DR5 (TNFRSF10B) (NM_147187) Human Tagged ORF Clone

SKU RG219808

TNFRSF10B (tGFP-tagged) - Human tumor necrosis factor receptor superfamily, member 10b (TNFRSF10B), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: DR5
• Synonyms: CD262; DR5; KILLER; KILLER/DR5; TRAIL-R2; TRAILR2; TRICK2; TRICK2A; TRICK2B; TRICKB; ZTNFR9
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG219808 representing NM_147187; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAACAACGGGGACAGAACGCCCCGGCCGCTTCGGGGGCCCGGAAAAGGCACGGCCCAGGACCCAGGG; AGGCGCGGGGAGCCAGGCCTGGGCTCCGGGTCCCCAAGACCCTTGTGCTCGTTGTCGCCGCGGTCCTGCT; GTTGGTCTCAGCTGAGTCTGCTCTGATCACCCAACAAGACCTAGCTCCCCAGCAGAGAGCGGCCCCACAA; CAAAAGAGGTCCAGCCCCTCAGAGGGATTGTGTCCACCTGGACACCATATCTCAGAAGACGGTAGAGATT; GCATCTCCTGCAAATATGGACAGGACTATAGCACTCACTGGAATGACCTCCTTTTCTGCTTGCGCTGCAC; CAGGTGTGATTCAGGTGAAGTGGAGCTAAGTCCCTGCACCACGACCAGAAACACAGTGTGTCAGTGCGAA; GAAGGCACCTTCCGGGAAGAAGATTCTCCTGAGATGTGCCGGAAGTGCCGCACAGGGTGTCCCAGAGGGA; TGGTCAAGGTCGGTGATTGTACACCCTGGAGTGACATCGAATGTGTCCACAAAGAATCAGGCATCATCAT; AGGAGTCACAGTTGCAGCCGTAGTCTTGATTGTGGCTGTGTTTGTTTGCAAGTCTTTACTGTGGAAGAAA; GTCCTTCCTTACCTGAAAGGCATCTGCTCAGGTGGTGGTGGGGACCCTGAGCGTGTGGACAGAAGCTCAC; AACGACCTGGGGCTGAGGACAATGTCCTCAATGAGATCGTGAGTATCTTGCAGCCCACCCAGGTCCCTGA; GCAGGAAATGGAAGTCCAGGAGCCAGCAGAGCCAACAGGTGTCAACATGTTGTCCCCCGGGGAGTCAGAG; CATCTGCTGGAACCGGCAGAAGCTGAAAGGTCTCAGAGGAGGAGGCTGCTGGTTCCAGCAAATGAAGGTG; ATCCCACTGAGACTCTGAGACAGTGCTTCGATGACTTTGCAGACTTGGTGCCCTTTGACTCCTGGGAGCC; GCTCATGAGGAAGTTGGGCCTCATGGACAATGAGATAAAGGTGGCTAAAGCTGAGGCAGCGGGCCACAGG; GACACCTTGTACACGATGCTGATAAAGTGGGTCAACAAAACCGGGCGAGATGCCTCTGTCCACACCCTGC; TGGATGCCTTGGAGACGCTGGGAGAGAGACTTGCCAAGCAGAAGATTGAGGACCACTTGTTGAGCTCTGG; AAAGTTCATGTATCTAGAAGGTAATGCAGACTCTGCCATGTCC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG219808 representing NM_147187; Red=Cloning site Green=Tags(s); ; MEQRGQNAPAASGARKRHGPGPREARGARPGLRVPKTLVLVVAAVLLLVSAESALITQQDLAPQQRAAPQ; QKRSSPSEGLCPPGHHISEDGRDCISCKYGQDYSTHWNDLLFCLRCTRCDSGEVELSPCTTTRNTVCQCE; EGTFREEDSPEMCRKCRTGCPRGMVKVGDCTPWSDIECVHKESGIIIGVTVAAVVLIVAVFVCKSLLWKK; VLPYLKGICSGGGGDPERVDRSSQRPGAEDNVLNEIVSILQPTQVPEQEMEVQEPAEPTGVNMLSPGESE; HLLEPAEAERSQRRRLLVPANEGDPTETLRQCFDDFADLVPFDSWEPLMRKLGLMDNEIKVAKAEAAGHR; DTLYTMLIKWVNKTGRDASVHTLLDALETLGERLAKQKIEDHLLSSGKFMYLEGNADSAMS; ; TRTRPLE - GFP Tag - V

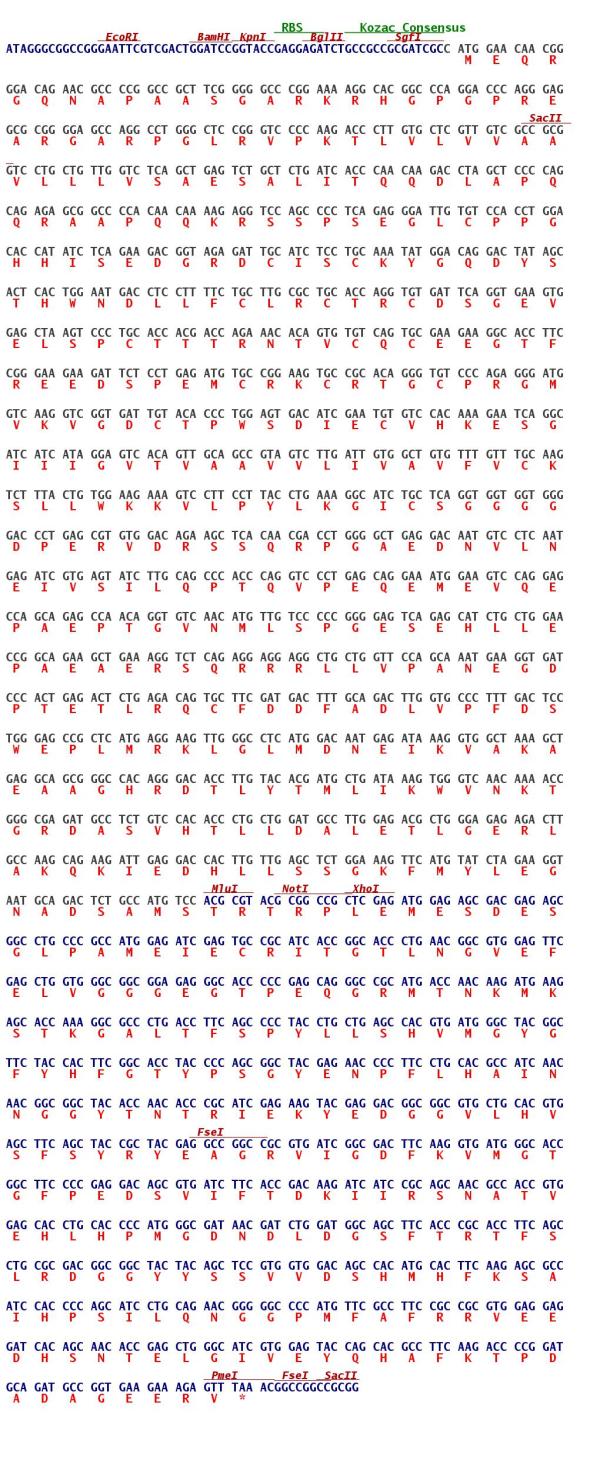

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_147187
• ORF Size: 1233 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_147187.1, NP_671716.1
• RefSeq Size: 4073 bp
• RefSeq ORF: 1236 bp
• Locus ID: 8795
• UniProt ID: O14763
• Cytogenetics: 8p21.3
• Domains: DEATH, TNFR
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Apoptosis, Cytokine-cytokine receptor interaction, Natural killer cell mediated cytotoxicity, p53 signaling pathway
• Summary: The protein encoded by this gene is a member of the TNF-receptor superfamily, and contains an intracellular death domain. This receptor can be activated by tumor necrosis factor-related apoptosis inducing ligand (TNFSF10/TRAIL/APO-2L), and transduces an apoptosis signal. Studies with FADD-deficient mice suggested that FADD, a death domain containing adaptor protein, is required for the apoptosis mediated by this protein. Two transcript variants encoding different isoforms and one non-coding transcript have been found for this gene. [provided by RefSeq, Mar 2009]
