PCDHA8 (NM_018911) Human Tagged ORF Clone

SKU RG218888

PCDHA8 (tGFP-tagged) - Human protocadherin alpha 8 (PCDHA8), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PCDHA8
• Synonyms: PCDH-ALPHA8
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG218888 representing NM_018911; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGATTATCACTGGCGAGGAGAGCTGGGATCCTGGCGACTACTACTCTTGCTTCTGCTCCTCGCAGCCT; GGAAGGTGGGGAGCGGCCAGCTCCACTACTCCGTCCCCGAGGAGGCCAAACACGGCACCTTCGTGGGCCG; GATCGCGCAGGACCTGGGGCTGGAGCTGGCGGAGCTGGTGCCGCGCCTGTTCCGGGTGGCGTCCAAAAGA; CACCGGGACCTTCTGGAGGTAAGTCTGCAGAATGGCATTTTGTTTGTGAATTCTCGGATCGACCGCGAGG; AGCTGTGCGGGCGGAGCGCGGAGTGCAGCATCCACCTGGAGGTGATCGTGGACAGGCCGCTGCAGGTTTT; CCATGTGGACGTGGAGGTGAAGGATGTTAATGACAACCCGCCAGTGTTCCGGGTAAAAGACCAAAAGCTG; TTTGTTTCAGAATCCAGAATGCCAGACTCTCGGTTTCCGCTAGAGGGCGCGTCCGATGCAGATGTTGGAG; CTAACTCCGTGTTAACCTACAGGCTTAGCTCTCATGATTACTTCATGCTAGATGTGAATTCAAAGAACGA; TGAGAATAAACTGGTTGAGCTCGTATTAAGAAAATCCTTGGACAGAGAGGACGCTCCTGCGCACCACTTA; TTCCTGACAGCCACAGATGGGGGCAAACCTGAGCTCACAGGCACTGTTCAGCTGCTGGTCACAGTGCTGG; ATGTGAATGATAATGCTCCCACTTTCGAACAGTCTGAATACGAAGTAAGAATATTCGAAAACGCAGACAA; CGGAACAACAGTTATCAAACTGAATGCTTCTGATCCGGATGAAGGAGCCAATGGGGCAATTTCATATTCT; TTTAATAGCCTTGTTGAAACTATGGTTATTGACCACTTTAGCATAGATCGAAATACGGGAGAAATAGTGA; TTCGGGGTAATTTGGATTTTGAACAAGAAAACTTATACAAAATCCTCATTGACGCCACGGACAAAGGCCA; TCCTCCCATGGCGGGTCATTGCACCGTTTTAGTGAGAATTTTGGATAAAAATGATAACGTCCCTGAGATA; GCACTGACTTCCTTATCCTTGCCTGTACGTGAAGACGCTCAATTTGGTACTGTCATCGCCCTAATTAGCG; TGAACGACCTCGATTCAGGTGCCAACGGGCAGGTGACCTGCTCCCTGATGCCCCATGTCCCCTTCAAGCT; GGTGTCCACCTTCAAGAATTACTACTCGTTGGTGCTGGACAGCGCCCTGGACCGCGAGAGAGTGTCGGCC; TATGAGTTGGTGGTAACCGCGCGGGACGGGGGCTCGCCTTCGCTGTGGGCCACCGCCAGCTTGTCTGTGG; AGGTGGCCGACGTGAACGACAATGCTCCGGCGTTCGCGCAGCCCGAGTACACGGTGTTCGTGAAGGAGAA; CAACCCGCCGGGCTGCCACATCTTCACGGTGTCTGCGCGAGACGCGGACGCGCAGGAGAACGCGCTGGTG; TCCTACTCGCTTGTGGAGCGGCGGGTGGGCGAGCGCTCGCTGTCGAGCTACATTTCGGTGCACACGGAGA; GCGGCAAGGTGTACGCGCTGCAGCCGCTGGACCACGAGGAGCTAGAGCTGCTGCAGTTCCAGGTGAGCGC; GCGCGACGCGGGCGTGCCGCCTCTGGGCAGCAACGTGACGCTGCAGGTGTTCGTGCTGGACGAGAATGAC; AACGCGCCGGCACTGCTGGAGCCTCGGGTGGGTGGCACTGGTGGCGCAGCGAGCAAGCTGGTGCCGCGGT; CTGTGGGCGCGGGCCACGTGGTAGCGAAGGTGCGCGCAGTGGACGCCGACTCGGGCTACAACGCGTGGCT; TTCGTATGAGCTGCAGCCAGCTGCAAGCAGCCCTCGCATCCCGTTCCGCGTGGGGCTGTACACGGGCGAG; ATCAGCACCACTCGTGTCCTGGACGAAGCGGACTCTCCGCGCCACCGTCTGCTGGTCCTGGTGAAGGATC; ATGGTGAACCTGCGCTGACCGCCACGGCCACGGTTCTGGTGTCGCTGGTGGAGAGCGGCCAGGCTCCAAA; AGCGTCATCGAGGCAGTCGGCTGGCGTTTTGGGTCCGGAAGCGGCGCTGGTGGATGTCAACGTGTACCTG; ATCATCGCCATCTGCGCGGTATCCAGCCTGCTGGTGCTCACGCTGCTGCTGTACACTGCGCTGCGGTGCT; CAGCACTGCCCACTGAGGGCGGGTGCCGGGCGGGCAAGCCCACTCTGGTGTGCTCCAGTGCGGTGGGGAG; CTGGTCATACTCGCAACAACAGCCGCAGAGGGTGTGCTCTGGTGAGGGGCCACCGAAGACGGACCTCATG; GCCTTCAGCCCCTGCCTTCCTCCTGATCTGGGATCAGTTGATGTAGGCGAAGAGCAAGATTTAAATGTTG; ATCATGGCCTCAAACCACGACAGCCCAACCCTGACTGGCGTTACTCTGCCTCCCTGAGAGCAGGCATGCA; CAGCTCTGTGCACCTAGAGGAGGCTGGCATTCTACGGGCTGGTCCAGGAGGGCCTGATCAGCAGTGGCCA; ACAGTATCCAGTGCAACACCAGAACCAGAGGCAGGAGAAGTGTCCCCTCCAGTCGGTGCGGGTGTCAACA; GCAACAGCTGGACCTTTAAATACGGACCAGGCAACCCCAAACAATCCGGTCCCGGTGAGTTGCCCGACAA; ATTCATTATCCCAGGATCTCCTGCAATCATCTCCATCCGGCAGGAGCCTACTAACAGCCAAATTGACAAA; AGTGACTTCATAACCTTCGGCAAAAAGGAGGAGACCAAGAAAAAGAAGAAAAAGAAGAAGGGTAACAAGA; CCCAGGAGAAAAAAGAGAAAGGGAACAGCACGACTGACAACAGTGACCAG; ; AGCGGACCGACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG218888 representing NM_018911; Red=Cloning site Green=Tags(s); ; MDYHWRGELGSWRLLLLLLLLAAWKVGSGQLHYSVPEEAKHGTFVGRIAQDLGLELAELVPRLFRVASKR; HRDLLEVSLQNGILFVNSRIDREELCGRSAECSIHLEVIVDRPLQVFHVDVEVKDVNDNPPVFRVKDQKL; FVSESRMPDSRFPLEGASDADVGANSVLTYRLSSHDYFMLDVNSKNDENKLVELVLRKSLDREDAPAHHL; FLTATDGGKPELTGTVQLLVTVLDVNDNAPTFEQSEYEVRIFENADNGTTVIKLNASDPDEGANGAISYS; FNSLVETMVIDHFSIDRNTGEIVIRGNLDFEQENLYKILIDATDKGHPPMAGHCTVLVRILDKNDNVPEI; ALTSLSLPVREDAQFGTVIALISVNDLDSGANGQVTCSLMPHVPFKLVSTFKNYYSLVLDSALDRERVSA; YELVVTARDGGSPSLWATASLSVEVADVNDNAPAFAQPEYTVFVKENNPPGCHIFTVSARDADAQENALV; SYSLVERRVGERSLSSYISVHTESGKVYALQPLDHEELELLQFQVSARDAGVPPLGSNVTLQVFVLDEND; NAPALLEPRVGGTGGAASKLVPRSVGAGHVVAKVRAVDADSGYNAWLSYELQPAASSPRIPFRVGLYTGE; ISTTRVLDEADSPRHRLLVLVKDHGEPALTATATVLVSLVESGQAPKASSRQSAGVLGPEAALVDVNVYL; IIAICAVSSLLVLTLLLYTALRCSALPTEGGCRAGKPTLVCSSAVGSWSYSQQQPQRVCSGEGPPKTDLM; AFSPCLPPDLGSVDVGEEQDLNVDHGLKPRQPNPDWRYSASLRAGMHSSVHLEEAGILRAGPGGPDQQWP; TVSSATPEPEAGEVSPPVGAGVNSNSWTFKYGPGNPKQSGPGELPDKFIIPGSPAIISIRQEPTNSQIDK; SDFITFGKKEETKKKKKKKKGNKTQEKKEKGNSTTDNSDQ; ; SGPTRTRRLE - GFP Tag - V

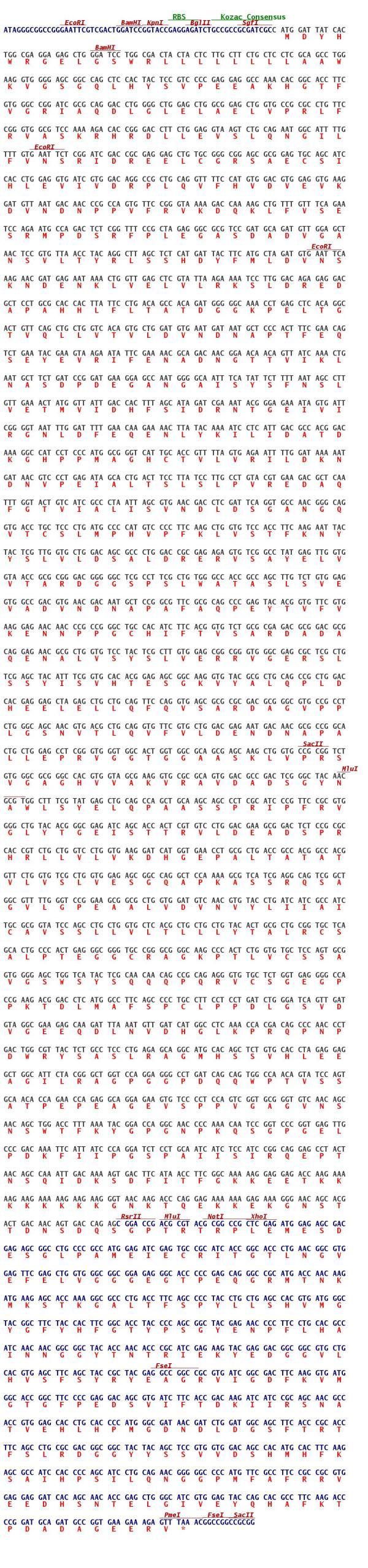

• Restriction Sites: SgfI-RsrII Cloning Scheme for this gene Plasmid Map
• ACCN: NM_018911
• ORF Size: 2850 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_018911.3
• RefSeq Size: 5260 bp
• RefSeq ORF: 2853 bp
• Locus ID: 56140
• UniProt ID: Q9Y5H6
• Cytogenetics: 5q31.3
• Domains: CA
• Protein Families: Transmembrane
• Summary: This gene is a member of the protocadherin alpha gene cluster, one of three related gene clusters tandemly linked on chromosome five that demonstrate an unusual genomic organization similar to that of B-cell and T-cell receptor gene clusters. The alpha gene cluster is composed of 15 cadherin superfamily genes related to the mouse CNR genes and consists of 13 highly similar and 2 more distantly related coding sequences. The tandem array of 15 N-terminal exons, or variable exons, are followed by downstream C-terminal exons, or constant exons, which are shared by all genes in the cluster. The large, uninterrupted N-terminal exons each encode six cadherin ectodomains while the C-terminal exons encode the cytoplasmic domain. These neural cadherin-like cell adhesion proteins are integral plasma membrane proteins that most likely play a critical role in the establishment and function of specific cell-cell connections in the brain. Alternative splicing has been observed and additional variants have been suggested but their full-length nature has yet to be determined. [provided by RefSeq, Jul 2008]
