Semaphorin 3E (SEMA3E) (NM_012431) Human Tagged ORF Clone

SKU RG216038

SEMA3E (tGFP-tagged) - Human sema domain, immunoglobulin domain (Ig), short basic domain, secreted, (semaphorin) 3E (SEMA3E), transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Semaphorin 3E
• Synonyms: coll-5; M-SEMAH; M-SemaK; SEMAH
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

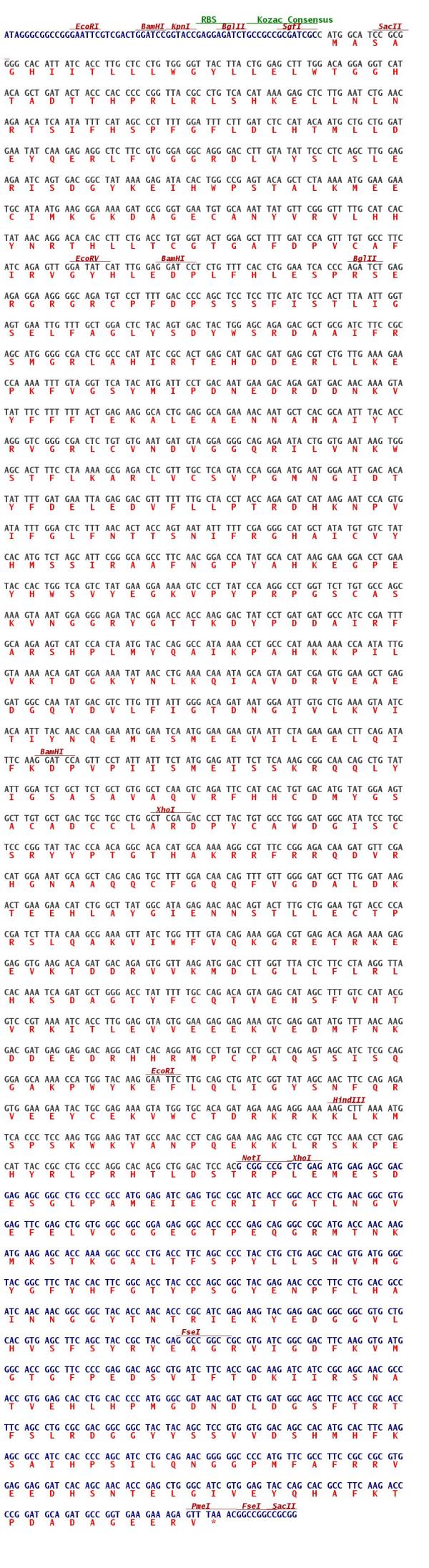

  ORF Nucleotide Sequence

  >RG216038 representing NM_012431; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCATCCGCGGGGCACATTATCACCTTGCTCCTGTGGGGTTACTTACTGGAGCTTTGGACAGGAGGTC; ATACAGCTGATACTACCCACCCCCGGTTACGCCTGTCACATAAAGAGCTCTTGAATCTGAACAGAACATC; AATATTTCATAGCCCTTTTGGATTTCTTGATCTCCATACAATGCTGCTGGATGAATATCAAGAGAGGCTC; TTCGTGGGAGGCAGGGACCTTGTATATTCCCTCAGCTTGGAGAGAATCAGTGACGGCTATAAAGAGATAC; ACTGGCCGAGTACAGCTCTAAAAATGGAAGAATGCATAATGAAGGGAAAAGATGCGGGTGAATGTGCAAA; TTATGTTCGGGTTTTGCATCACTATAACAGGACACACCTTCTGACCTGTGGTACTGGAGCTTTTGATCCA; GTTTGTGCCTTCATCAGAGTTGGATATCATTTGGAGGATCCTCTGTTTCACCTGGAATCACCCAGATCTG; AGAGAGGAAGGGGCAGATGTCCTTTTGACCCCAGCTCCTCCTTCATCTCCACTTTAATTGGTAGTGAATT; GTTTGCTGGACTCTACAGTGACTACTGGAGCAGAGACGCTGCGATCTTCCGCAGCATGGGGCGACTGGCC; CATATCCGCACTGAGCATGACGATGAGCGTCTGTTGAAAGAACCAAAATTTGTAGGTTCATACATGATTC; CTGACAATGAAGACAGAGATGACAACAAAGTATATTTCTTTTTTACTGAGAAGGCACTGGAGGCAGAAAA; CAATGCTCACGCAATTTACACCAGGGTCGGGCGACTCTGTGTGAATGATGTAGGAGGGCAGAGAATACTG; GTGAATAAGTGGAGCACTTTCCTAAAAGCGAGACTCGTTTGCTCAGTACCAGGAATGAATGGAATTGACA; CATATTTTGATGAATTAGAGGACGTTTTTTTGCTACCTACCAGAGATCATAAGAATCCAGTGATATTTGG; ACTCTTTAACACTACCAGTAATATTTTTCGAGGGCATGCTATATGTGTCTATCACATGTCTAGCATTCGG; GCAGCCTTCAACGGACCATATGCACATAAGGAAGGACCTGAATACCACTGGTCAGTCTATGAAGGAAAAG; TCCCTTATCCAAGGCCTGGTTCTTGTGCCAGCAAAGTAAATGGAGGGAGATACGGAACCACCAAGGACTA; TCCTGATGATGCCATCCGATTTGCAAGAAGTCATCCACTAATGTACCAGGCCATAAAACCTGCCCATAAA; AAACCAATATTGGTAAAAACAGATGGAAAATATAACCTGAAACAAATAGCAGTAGATCGAGTGGAAGCTG; AGGATGGCCAATATGACGTCTTGTTTATTGGGACAGATAATGGAATTGTGCTGAAAGTAATCACAATTTA; CAACCAAGAAATGGAATCAATGGAAGAAGTAATTCTAGAAGAACTTCAGATATTCAAGGATCCAGTTCCT; ATTATTTCTATGGAGATTTCTTCAAAGCGGCAACAGCTGTATATTGGATCTGCTTCTGCTGTGGCTCAAG; TCAGATTCCATCACTGTGACATGTATGGAAGTGCTTGTGCTGACTGCTGCCTGGCTCGAGACCCTTACTG; TGCCTGGGATGGCATATCCTGCTCCCGGTATTACCCAACAGGCACACATGCAAAAAGGCGTTTCCGGAGA; CAAGATGTTCGACATGGAAATGCAGCTCAGCAGTGCTTTGGACAACAGTTTGTTGGGGATGCTTTGGATA; AGACTGAAGAACATCTGGCTTATGGCATAGAGAACAACAGTACTTTGCTGGAATGTACCCCACGATCTTT; ACAAGCGAAAGTTATCTGGTTTGTACAGAAAGGACGTGAGACAAGAAAAGAGGAGGTGAAGACAGATGAC; AGAGTGGTTAAGATGGACCTTGGTTTACTCTTCCTAAGGTTACACAAATCAGATGCTGGGACCTATTTTT; GCCAGACAGTAGAGCATAGCTTTGTCCATACGGTCCGTAAAATCACCTTGGAGGTAGTGGAAGAGGAGAA; AGTCGAGGATATGTTTAACAAGGACGATGAGGAGGACAGGCATCACAGGATGCCTTGTCCTGCTCAGAGT; AGCATCTCGCAGGGAGCAAAACCATGGTACAAGGAATTCTTGCAGCTGATCGGTTATAGCAACTTCCAGA; GAGTGGAAGAATACTGCGAGAAAGTATGGTGCACAGATAGAAAGAGGAAAAAGCTTAAAATGTCACCCTC; CAAGTGGAAGTATGCCAACCCTCAGGAAAAGAAGCTCCGTTCCAAACCTGAGCATTACCGCCTGCCCAGG; CACACGCTGGACTCC; ; ACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG216038 representing NM_012431; Red=Cloning site Green=Tags(s); ; MASAGHIITLLLWGYLLELWTGGHTADTTHPRLRLSHKELLNLNRTSIFHSPFGFLDLHTMLLDEYQERL; FVGGRDLVYSLSLERISDGYKEIHWPSTALKMEECIMKGKDAGECANYVRVLHHYNRTHLLTCGTGAFDP; VCAFIRVGYHLEDPLFHLESPRSERGRGRCPFDPSSSFISTLIGSELFAGLYSDYWSRDAAIFRSMGRLA; HIRTEHDDERLLKEPKFVGSYMIPDNEDRDDNKVYFFFTEKALEAENNAHAIYTRVGRLCVNDVGGQRIL; VNKWSTFLKARLVCSVPGMNGIDTYFDELEDVFLLPTRDHKNPVIFGLFNTTSNIFRGHAICVYHMSSIR; AAFNGPYAHKEGPEYHWSVYEGKVPYPRPGSCASKVNGGRYGTTKDYPDDAIRFARSHPLMYQAIKPAHK; KPILVKTDGKYNLKQIAVDRVEAEDGQYDVLFIGTDNGIVLKVITIYNQEMESMEEVILEELQIFKDPVP; IISMEISSKRQQLYIGSASAVAQVRFHHCDMYGSACADCCLARDPYCAWDGISCSRYYPTGTHAKRRFRR; QDVRHGNAAQQCFGQQFVGDALDKTEEHLAYGIENNSTLLECTPRSLQAKVIWFVQKGRETRKEEVKTDD; RVVKMDLGLLFLRLHKSDAGTYFCQTVEHSFVHTVRKITLEVVEEEKVEDMFNKDDEEDRHHRMPCPAQS; SISQGAKPWYKEFLQLIGYSNFQRVEEYCEKVWCTDRKRKKLKMSPSKWKYANPQEKKLRSKPEHYRLPR; HTLDS; ; TRPLE - GFP Tag - V
• Restriction Sites: SgfI-NotI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_012431
• ORF Size: 2325 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_012431.3
• RefSeq Size: 6474 bp
• RefSeq ORF: 2328 bp
• Locus ID: 9723
• UniProt ID: O15041
• Cytogenetics: 7q21.11
• Domains: ig, PSI, Sema
• Protein Families: Secreted Protein
• Protein Pathways: Axon guidance
• Summary: Semaphorins are a large family of conserved secreted and membrane associated proteins which possess a semaphorin (Sema) domain and a PSI domain (found in plexins, semaphorins and integrins) in the N-terminal extracellular portion. Based on sequence and structural similarities, semaphorins are put into eight classes: invertebrates contain classes 1 and 2, viruses have class V, and vertebrates contain classes 3-7. Semaphorins serve as axon guidance ligands via multimeric receptor complexes, some (if not all) containing plexin proteins. This gene encodes a class 4 semaphorin. This gene encodes a class 3 semaphorin. Multiple transcript variants encoding different isoforms have been found for this gene.[provided by RefSeq, May 2010]
