TBC1D4 (NM_014832) Human Tagged ORF Clone

SKU RG212105

TBC1D4 (tGFP-tagged) - Human TBC1 domain family, member 4 (TBC1D4)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: TBC1D4
• Synonyms: AS160; NIDDM5
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

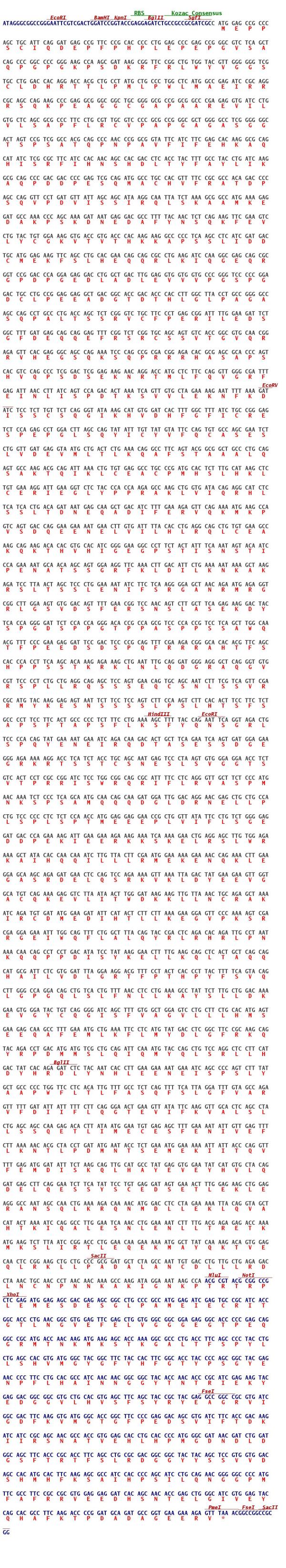

  ORF Nucleotide Sequence

  >RG212105 representing NM_014832; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGAGCCGCCCAGCTGCATTCAGGATGAGCCGTTCCCGCACCCCCTGGAGCCCGAGCCGGGCGTCTCAG; CTCAGCCCGGCCCCGGGAAGCCAAGCGATAAGCGGTTCCGGCTGTGGTACGTTGGGGGGTCGTGCCTGGA; CCACAGGACCACGCTGCCTATGCTGCCCTGGCTCATGGCCGAGATCCGCAGGCGCAGCCAGAAGCCCGAG; GCGGGCGGCTGCGGGGCGCCGGCGGCCCGAGAGGTGATCCTGGTGCTCAGCGCGCCCTTCCTGCGTTGCG; TCCCCGCGCCGGGCGCTGGGGCCTCGGGGGGCACTAGTCCGTCGGCCACGCAGCCCAACCCGGCGGTATT; CATCTTCGAGCACAAGGCGCAGCATATCTCGCGCTTCATCCACAACAGCCACGACCTCACCTACTTTGCC; TACCTGATCAAGGCGCAGCCCGACGACCCCGAGTCGCAGATGGCCTGCCACGTTTTCCGCGCCACAGACC; CCAGCCAGGTTCCTGATGTTATTAGCAGCATAAGGCAATTATCTAAAGCGGCCATGAAAGAGGATGCCAA; ACCCAGCAAAGATAATGAGGACGCCTTTTACAACTCTCAGAAGTTCGAAGTCCTGTACTGTGGAAAGGTG; ACCGTGACCCACAAGAAGGCCCCCTCAAGCCTCATCGATGACTGCATGGAGAAGTTCAGCCTGCACGAAC; AGCAGCGCCTGAAGATCCAAGGCGAGCAGCGCGGTCCGGACCCAGGAGAGGACCTGGCTGACTTGGAGGT; GGTGGTGCCCGGGTCCCCCGGAGACTGCCTGCCGGAGGAGGCTGACGGCACCGACACCCACCTTGGCTTA; CCTGCCGGGGCCAGCCAGCCTGCCCTGACCAGCTCTCGGGTCTGCTTCCCTGAGCGGATTTTGGAAGATT; CTGGCTTTGATGAGCAGCAGGAGTTTCGGTCTCGGTGCAGCAGTGTCACCGGCGTGCAACGGAGAGTTCA; CGAGGGCAGCCAGAAATCCCAGCCGCGACGGAGACACGCGAGCGCACCCAGTCACGTCCAGCCCTCGGAC; TCGGAGAAGAACAGGACCATGCTCTTCCAGGTTGGGCGATTTGAGATTAACCTTATCAGTCCAGACACTA; AATCAGTTGTGCTAGAAAAGAATTTTAAAGATATCTCCTCTTGTTCTCAGGGTATAAAGCATGTGGATCA; CTTTGGCTTTATCTGCCGGGAGTCTCCAGAGCCTGGACTTAGCCAGTATATTTGTTATGTATTCCAGTGT; GCCAGCGAATCTCTGGTTGATGAGGTAATGCTGACTCTGAAACAGGCCTTCAGTACGGCGGCTGCCCTGC; AGAGTGCCAAGACGCAGATTAAACTGTGTGAGGCCTGCCCGATGCACTCTTTGCATAAGCTCTGTGAAAG; GATTGAAGGTCTCTACCCACCAAGAGCCAAGCTGGTGATACAGAGGCATCTCTCATCACTGACAGATAAT; GAGCAAGCTGACATCTTTGAAAGAGTTCAGAAAATGAAGCCAGTCAGTGACCAGGAAGAAAATGAACTTG; TGATTTTACACCTGAGGCAGCTGTGTGAAGCCAAGCAGAAGACACACGTGCACATCGGGGAAGGCCCTTC; TACTATTTCAAATAGTACAATCCCAGAAAATGCAACAAGCAGTGGAAGGTTCAAACTTGACATTCTGAAA; AATAAAGCTAAGAGATCCTTAACTAGCTCCCTGGAAAATATCTTCTCAAGGGGAGCTAACAGAATGAGAG; GTCGGCTTGGAAGTGTGGACAGTTTTGAACGGTCCAACAGTCTTGCTTCAGAGAAGGACTACTCACCAGG; GGATTCTCCACCAGGGACACCGCCAGCGTCCCCACCGTCCTCAGCTTGGCAAACGTTTCCCGAAGAGGAT; TCCGACTCCCCGCAGTTTCGAAGACGGGCACACACGTTCAGCCACCCACCTTCAAGCACAAAGAGAAAGC; TGAATTTGCAGGATGGGAGGGCTCAGGGTGTGCGTTCCCCTCTGCTGAGGCAGAGCTCCAGTGAACAGTG; CAGCAATCTTTCGTCAGTTCGACGCATGTACAAGGAGAGTAATTCTTCCTCCAGTCTTCCAAGTCTTCAC; ACTTCCTTCTCTGCCCCTTCCTTCACTGCCCCCTCTTTCCTGAAAAGCTTTTACCAGAATTCAGGTAGAC; TGTCCCCACAGTATGAAAATGAAATCAGACAAGACACTGCTTCAGAATCAAGTGATGGAGAAGGGAGAAA; AAGGACCTCATCTACCTGCAGCAATGAGTCCCTAAGTGTGGGAGGAACCTCTGTCACTCCTCGCCGGATC; TCCTGGCGGCAGCGCATTTTCCTCAGGGTTGCTTCTCCCATGAACAAATCTCCCTCAGCAATGCAACAGC; AAGATGGATTGGACAGGAACGAGCTGCTGCCACTGTCCCCCCTCTCTCCAACCATGGAGGAGGAACCGCT; GGTTATATTCCTGTCTGGGGAGGATGACCCAGAAAAGATTGAAGAAAGAAAGAAATCAAAAGAACTGAGG; AGCTTGTGGAGAAAAGCTATACACCAACAAATCTTGTTACTTCGAATGGAAAAAGAAAACCAGAAACTTG; AAGGAGCAAGCAGAGATGAACTCCAGTCCAGAAAAGTTAAATTAGACTATGAAGAAGTTGGTGCATGTCA; GAAAGAGGTCTTAATAACTTGGGATAAGAAGTTGTTAAACTGCAGAGCTAAAATCAGATGTGATATGGAA; GATATTCATACTCTTCTTAAAGAAGGAGTTCCCAAAAGTCGACGAGGAGAAATTTGGCAGTTTCTGGCTT; TACAGTACCGACTCAGACACAGATTGCCTAATAAACAACAGCCTCCTGACATATCCTATAAGGAACTTTT; GAAGCAGCTCACTGCTCAGCAGCATGCGATTCTCGTGGATTTAGGAAGGACGTTTCCTACTCACCCTTAC; TTTTCAGTACAGCTTGGGCCAGGACAGCTGTCACTGTTTAACCTCCTGAAAGCCTATTCTTTGCTGGACA; AAGAAGTGGGATACTGTCAGGGGATCAGCTTTGTGGCTGGAGTCCTGCTTCTGCACATGAGTGAAGAGCA; AGCCTTTGAAATGCTGAAATTCCTCATGTATGACCTCGGCTTCCGCAAGCAGTACAGACCTGACATGATG; TCGCTGCAGATTCAAATGTACCAGCTGTCCAGGCTCCTTCATGACTATCACAGAGATCTCTACAATCACC; TTGAAGAAAATGAAATCAGCCCCAGTCTTTATGCTGCCCCCTGGTTCCTCACATTGTTTGCCTCTCAGTT; TTCATTAGGATTTGTAGCCAGAGTTTTTGATATTATTTTTCTTCAGGGAACTGAAGTTATATTCAAGGTT; GCACTCAGCCTACTGAGCAGCCAAGAGACACTTATAATGGAATGTGAGAGCTTTGAAAATATTGTTGAGT; TTCTTAAAAACACGCTACCTGATATGAATACCTCTGAAATGGAAAAAATTATTACCCAGGTTTTTGAGAT; GGATATTTCTAAGCAGTTGCATGCCTATGAGGTGGAATATCATGTGCTACAGGATGAGCTTCAGGAATCT; TCATATTCCTGTGAGGATAGTGAAACTTTGGAGAAGCTGGAGAGGGCCAATAGCCAACTGAAAAGACAAA; ACATGGACCTCCTAGAAAAATTACAGGTAGCTCATACTAAAATCCAGGCCTTGGAATCAAACCTGGAAAA; TCTTTTGACGAGAGAGACCAAAATGAAGTCTTTAATCCGGACCCTGGAACAAGAAAAAATGGCTTATCAA; AAGACAGTGGAGCAACTCCGGAAGCTGCTGCCCGCGGATGCTCTAGCCAATTGTGACCTGTTGCTGAGAG; ACCTAAACTGCAACCCTAACAACAAAGCCAAGATAGGAAATAAGCCA; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG212105 representing NM_014832; Red=Cloning site Green=Tags(s); ; MEPPSCIQDEPFPHPLEPEPGVSAQPGPGKPSDKRFRLWYVGGSCLDHRTTLPMLPWLMAEIRRRSQKPE; AGGCGAPAAREVILVLSAPFLRCVPAPGAGASGGTSPSATQPNPAVFIFEHKAQHISRFIHNSHDLTYFA; YLIKAQPDDPESQMACHVFRATDPSQVPDVISSIRQLSKAAMKEDAKPSKDNEDAFYNSQKFEVLYCGKV; TVTHKKAPSSLIDDCMEKFSLHEQQRLKIQGEQRGPDPGEDLADLEVVVPGSPGDCLPEEADGTDTHLGL; PAGASQPALTSSRVCFPERILEDSGFDEQQEFRSRCSSVTGVQRRVHEGSQKSQPRRRHASAPSHVQPSD; SEKNRTMLFQVGRFEINLISPDTKSVVLEKNFKDISSCSQGIKHVDHFGFICRESPEPGLSQYICYVFQC; ASESLVDEVMLTLKQAFSTAAALQSAKTQIKLCEACPMHSLHKLCERIEGLYPPRAKLVIQRHLSSLTDN; EQADIFERVQKMKPVSDQEENELVILHLRQLCEAKQKTHVHIGEGPSTISNSTIPENATSSGRFKLDILK; NKAKRSLTSSLENIFSRGANRMRGRLGSVDSFERSNSLASEKDYSPGDSPPGTPPASPPSSAWQTFPEED; SDSPQFRRRAHTFSHPPSSTKRKLNLQDGRAQGVRSPLLRQSSSEQCSNLSSVRRMYKESNSSSSLPSLH; TSFSAPSFTAPSFLKSFYQNSGRLSPQYENEIRQDTASESSDGEGRKRTSSTCSNESLSVGGTSVTPRRI; SWRQRIFLRVASPMNKSPSAMQQQDGLDRNELLPLSPLSPTMEEEPLVIFLSGEDDPEKIEERKKSKELR; SLWRKAIHQQILLLRMEKENQKLEGASRDELQSRKVKLDYEEVGACQKEVLITWDKKLLNCRAKIRCDME; DIHTLLKEGVPKSRRGEIWQFLALQYRLRHRLPNKQQPPDISYKELLKQLTAQQHAILVDLGRTFPTHPY; FSVQLGPGQLSLFNLLKAYSLLDKEVGYCQGISFVAGVLLLHMSEEQAFEMLKFLMYDLGFRKQYRPDMM; SLQIQMYQLSRLLHDYHRDLYNHLEENEISPSLYAAPWFLTLFASQFSLGFVARVFDIIFLQGTEVIFKV; ALSLLSSQETLIMECESFENIVEFLKNTLPDMNTSEMEKIITQVFEMDISKQLHAYEVEYHVLQDELQES; SYSCEDSETLEKLERANSQLKRQNMDLLEKLQVAHTKIQALESNLENLLTRETKMKSLIRTLEQEKMAYQ; KTVEQLRKLLPADALANCDLLLRDLNCNPNNKAKIGNKP; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_014832
• ORF Size: 3897 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_014832.1, NP_055647.1
• RefSeq Size: 5922 bp
• RefSeq ORF: 3897 bp
• Locus ID: 9882
• UniProt ID: O60343
• Cytogenetics: 13q22.2
• Domains: PID, TBC
• Summary: This gene is a member of the Tre-2/BUB2/CDC16 domain family. The protein encoded by this gene is a Rab-GTPase-activating protein, and contains two phopshotyrosine-binding domains (PTB1 and PTB2), a calmodulin-binding domain (CBD), a Rab-GTPase domain, and multiple AKT phosphomotifs. This protein is thought to play an important role in glucose homeostasis by regulating the insulin-dependent trafficking of the glucose transporter 4 (GLUT4), important for removing glucose from the bloodstream into skeletal muscle and fat tissues. Reduced expression of this gene results in an increase in GLUT4 levels at the plasma membrane, suggesting that this protein is important in intracellular retention of GLUT4 under basal conditions. When exposed to insulin, this protein is phosphorylated, dissociates from GLUT4 vesicles, resulting in increased GLUT4 at the cell surface, and enhanced glucose transport. Phosphorylation of this protein by AKT is required for proper translocation of GLUT4 to the cell surface. Individuals homozygous for a mutation in this gene are at higher risk for type 2 diabetes and have higher levels of circulating glucose and insulin levels after glucose ingestion. Alternative splicing results in multiple transcript variants encoding different isoforms. [provided by RefSeq, Aug 2015]
