GIRK2 (KCNJ6) (NM_002240) Human Tagged ORF Clone

SKU RG210938

KCNJ6 (tGFP-tagged) - Human potassium inwardly-rectifying channel, subfamily J, member 6 (KCNJ6)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: GIRK2
• Synonyms: BIR1; GIRK-2; GIRK2; hiGIRK2; KATP-2; KATP2; KCNJ7; KIR3.2; KPLBS
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

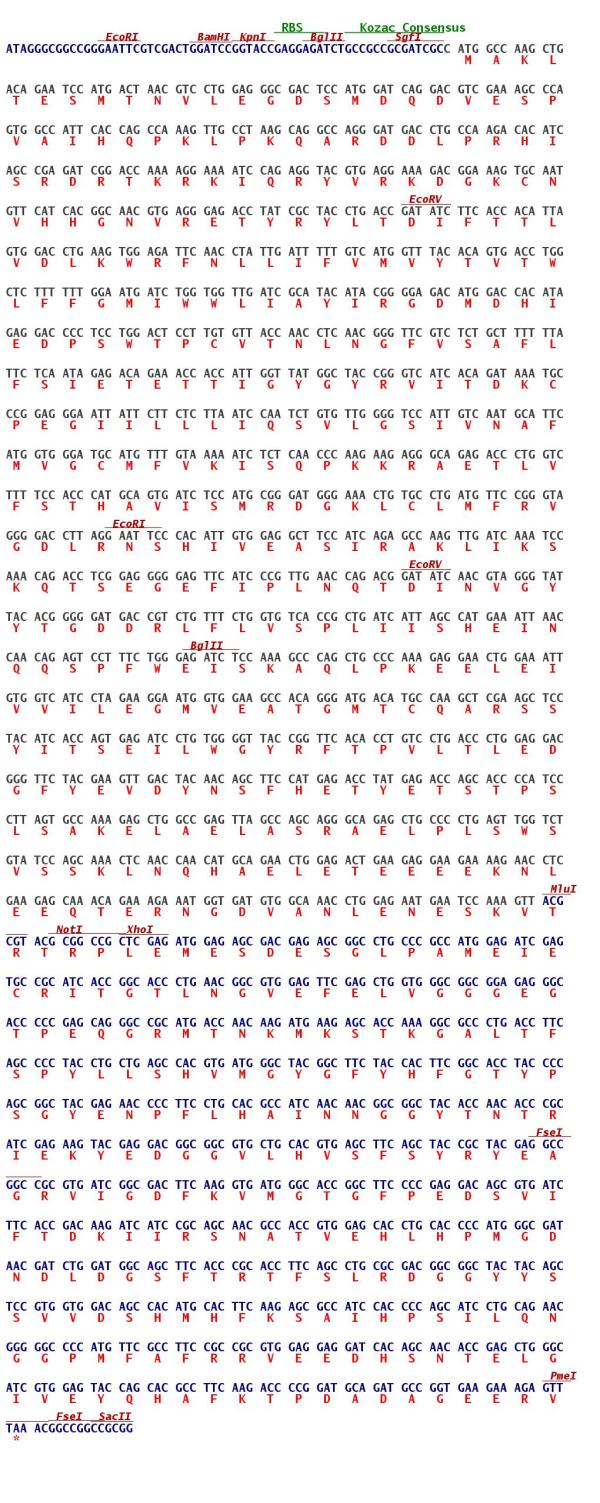

  ORF Nucleotide Sequence

  >RG210938 representing NM_002240; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCCAAGCTGACAGAATCCATGACTAACGTCCTGGAGGGCGACTCCATGGATCAGGACGTCGAAAGCC; CAGTGGCCATTCACCAGCCAAAGTTGCCTAAGCAGGCCAGGGATGACCTGCCAAGACACATCAGCCGAGA; TCGGACCAAAAGGAAAATCCAGAGGTACGTGAGGAAAGACGGAAAGTGCAATGTTCATCACGGCAACGTG; AGGGAGACCTATCGCTACCTGACCGATATCTTCACCACATTAGTGGACCTGAAGTGGAGATTCAACCTAT; TGATTTTTGTCATGGTTTACACAGTGACCTGGCTCTTTTTTGGAATGATCTGGTGGTTGATCGCATACAT; ACGGGGAGACATGGACCACATAGAGGACCCCTCCTGGACTCCTTGTGTTACCAACCTCAACGGGTTCGTC; TCTGCTTTTTTATTCTCAATAGAGACAGAAACCACCATTGGTTATGGCTACCGGGTCATCACAGATAAAT; GCCCGGAGGGAATTATTCTTCTCTTAATCCAATCTGTGTTGGGGTCCATTGTCAATGCATTCATGGTGGG; ATGCATGTTTGTAAAAATCTCTCAACCCAAGAAGAGGGCAGAGACCCTGGTCTTTTCCACCCATGCAGTG; ATCTCCATGCGGGATGGGAAACTGTGCCTGATGTTCCGGGTAGGGGACCTTAGGAATTCCCACATTGTGG; AGGCTTCCATCAGAGCCAAGTTGATCAAATCCAAACAGACCTCGGAGGGGGAGTTCATCCCGTTGAACCA; GACGGATATCAACGTAGGGTATTACACGGGGGATGACCGTCTGTTTCTGGTGTCACCGCTGATCATTAGC; CATGAAATTAACCAACAGAGTCCTTTCTGGGAGATCTCCAAAGCCCAGCTGCCCAAAGAGGAACTGGAAA; TTGTGGTCATCCTAGAAGGAATGGTGGAAGCCACAGGGATGACATGCCAAGCTCGAAGCTCCTACATCAC; CAGTGAGATCCTGTGGGGTTACCGGTTCACACCTGTCCTGACCCTGGAGGACGGGTTCTACGAAGTTGAC; TACAACAGCTTCCATGAGACCTATGAGACCAGCACCCCATCCCTTAGTGCCAAAGAGCTGGCCGAGTTAG; CCAGCAGGGCAGAGCTGCCCCTGAGTTGGTCTGTATCCAGCAAACTCAACCAACATGCAGAACTGGAGAC; TGAAGAGGAAGAAAAGAACCTCGAAGAGCAAACAGAAAGAAATGGTGATGTGGCAAACCTGGAGAATGAA; TCCAAAGTT; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG210938 representing NM_002240; Red=Cloning site Green=Tags(s); ; MAKLTESMTNVLEGDSMDQDVESPVAIHQPKLPKQARDDLPRHISRDRTKRKIQRYVRKDGKCNVHHGNV; RETYRYLTDIFTTLVDLKWRFNLLIFVMVYTVTWLFFGMIWWLIAYIRGDMDHIEDPSWTPCVTNLNGFV; SAFLFSIETETTIGYGYRVITDKCPEGIILLLIQSVLGSIVNAFMVGCMFVKISQPKKRAETLVFSTHAV; ISMRDGKLCLMFRVGDLRNSHIVEASIRAKLIKSKQTSEGEFIPLNQTDINVGYYTGDDRLFLVSPLIIS; HEINQQSPFWEISKAQLPKEELEIVVILEGMVEATGMTCQARSSYITSEILWGYRFTPVLTLEDGFYEVD; YNSFHETYETSTPSLSAKELAELASRAELPLSWSVSSKLNQHAELETEEEEKNLEEQTERNGDVANLENE; SKV; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_002240
• ORF Size: 1269 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_002240.2, NP_002231.1
• RefSeq Size: 2485 bp
• RefSeq ORF: 1272 bp
• Locus ID: 3763
• UniProt ID: P48051
• Cytogenetics: 21q22.13
• Domains: IRK
• Protein Families: Druggable Genome, Ion Channels: Potassium, Transmembrane
• Summary: This gene encodes a member of the G protein-coupled inwardly-rectifying potassium channel family of inward rectifier potassium channels. This type of potassium channel allows a greater flow of potassium into the cell than out of it. These proteins modulate many physiological processes, including heart rate in cardiac cells and circuit activity in neuronal cells, through G-protein coupled receptor stimulation. Mutations in this gene are associated with Keppen-Lubinsky Syndrome, a rare condition characterized by severe developmental delay, facial dysmorphism, and intellectual disability. [provided by RefSeq, Apr 2015]
