RAN (NM_006325) Human Tagged ORF Clone

  • TrueORF®
SKU
RG208738
RAN (tGFP-tagged) - Human RAN, member RAS oncogene family (RAN)
$489.00 $500.00
In Stock*
Specifications
Specifications
Product Data
Type Human Tagged ORF Clone
Target Symbol RAN
Synonyms ARA24; Gsp1; TC4
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>RG208738 representing NM_006325
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGCTGCGCAGGGAGAGCCCCAGGTCCAGTTCAAACTTGTATTGGTTGGTGATGGTGGTACTGGAAAAA
CGACCTTCGTGAAACGTCATTTGACTGGTGAATTTGAGAAGAAGTATGTAGCCACCTTGGGTGTTGAGGT
TCATCCCCTAGTGTTCCACACCAACAGAGGACCTATTAAGTTCAATGTATGGGACACAGCCGGCCAGGAG
AAATTCGGTGGACTGAGAGATGGCTATTATATCCAAGCCCAGTGTGCCATCATAATGTTTGATGTAACAT
CGAGAGTTACTTACAAGAATGTGCCTAACTGGCATAGAGATCTGGTACGAGTGTGTGAAAACATCCCCAT
TGTGTTGTGTGGCAACAAAGTGGATATTAAGGACAGGAAAGTGAAGGCGAAATCCATTGTCTTCCACCGA
AAGAAGAATCTTCAGTACTACGACATTTCTGCCAAAAGTAACTACAACTTTGAAAAGCCCTTCCTCTGGC
TTGCTAGGAAGCTCATTGGAGACCCTAACTTGGAATTTGTTGCCATGCCTGCTCTCGCCCCACCAGAAGT
TGTCATGGACCCAGCTTTGGCAGCACAGTATGAGCACGACTTAGAGGTTGCTCAGACAACTGCTCTCCCG
GATGAGGATGATGACCTG


ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>RG208738 representing NM_006325
Red=Cloning site Green=Tags(s)

MAAQGEPQVQFKLVLVGDGGTGKTTFVKRHLTGEFEKKYVATLGVEVHPLVFHTNRGPIKFNVWDTAGQE
KFGGLRDGYYIQAQCAIIMFDVTSRVTYKNVPNWHRDLVRVCENIPIVLCGNKVDIKDRKVKAKSIVFHR
KKNLQYYDISAKSNYNFEKPFLWLARKLIGDPNLEFVAMPALAPPEVVMDPALAAQYEHDLEVAQTTALP
DEDDDL

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_006325
ORF Size 648 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_006325.5
RefSeq Size 1656 bp
RefSeq ORF 651 bp
Locus ID 5901
UniProt ID P62826
Cytogenetics 12q24.33
Domains RAB, RAN, ras, RAS, RHO
Protein Families Druggable Genome, Transcription Factors
Summary RAN (ras-related nuclear protein) is a small GTP binding protein belonging to the RAS superfamily that is essential for the translocation of RNA and proteins through the nuclear pore complex. The RAN protein is also involved in control of DNA synthesis and cell cycle progression. Nuclear localization of RAN requires the presence of regulator of chromosome condensation 1 (RCC1). Mutations in RAN disrupt DNA synthesis. Because of its many functions, it is likely that RAN interacts with several other proteins. RAN regulates formation and organization of the microtubule network independently of its role in the nucleus-cytosol exchange of macromolecules. RAN could be a key signaling molecule regulating microtubule polymerization during mitosis. RCC1 generates a high local concentration of RAN-GTP around chromatin which, in turn, induces the local nucleation of microtubules. RAN is an androgen receptor (AR) coactivator that binds differentially with different lengths of polyglutamine within the androgen receptor. Polyglutamine repeat expansion in the AR is linked to Kennedy's disease (X-linked spinal and bulbar muscular atrophy). RAN coactivation of the AR diminishes with polyglutamine expansion within the AR, and this weak coactivation may lead to partial androgen insensitivity during the development of Kennedy's disease. provided by RefSeq, Jul 2008
Reviews






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_006325" in other vectors (6)
SKU Description Size Price
RC208738 RAN (Myc-DDK-tagged)-Human RAN, member RAS oncogene family (RAN) 10 ug
$300.00
RC208738L1 Lenti ORF clone of Human RAN, member RAS oncogene family (RAN), Myc-DDK-tagged 10 ug
$600.00
RC208738L2 Lenti ORF clone of Human RAN, member RAS oncogene family (RAN), mGFP tagged 10 ug
$600.00
RC208738L3 Lenti ORF clone of Human RAN, member RAS oncogene family (RAN), Myc-DDK-tagged 10 ug
$600.00
RC208738L4 Lenti ORF clone of Human RAN, member RAS oncogene family (RAN), mGFP tagged 10 ug
$600.00
SC116166 RAN (untagged)-Human RAN, member RAS oncogene family (RAN) 10 ug
$450.00

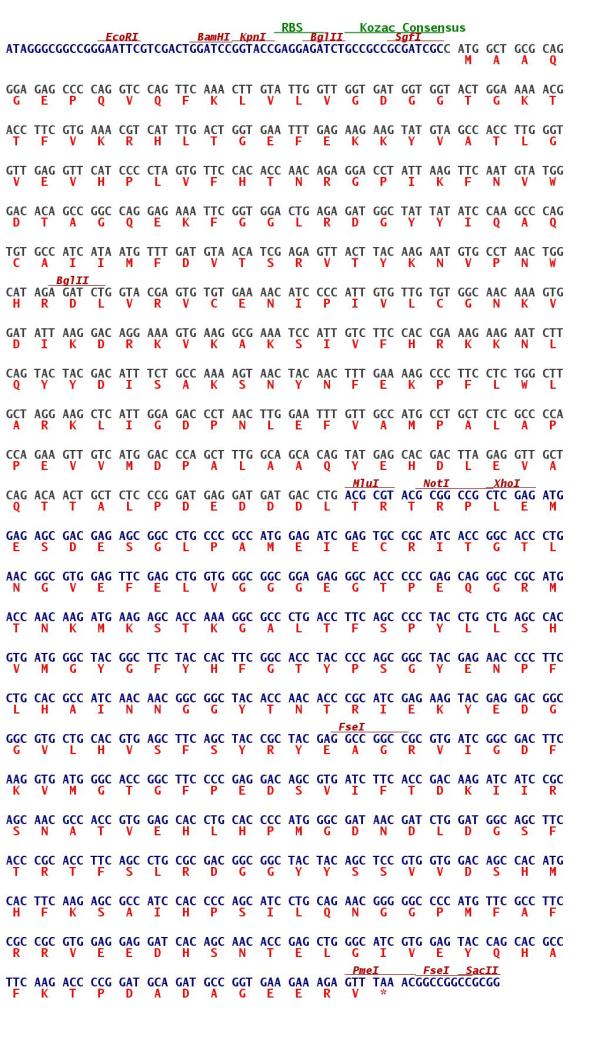

Plasmid Map for RG208738

Download sequence for

Cloning scheme for RG208738

Circular map for RG208738

file-alt Citations

Nucleocytoplasmic transport defect in a North American patient with ALS8
Guber, Schindler, Budron et al
Ann Clin Transl Neurol (2018) 5 (3), 369-375 DOI: 10.1002/acn3.515
Cited by 15
AI Summary: OriGene products, specifically the anti-VAPB antibody (TA324489) and the Ran cDNA clone (RC201307), were used in this study to analyze VAPB protein expression/localization and to assess Ran trafficking, respectively, thereby helping to demonstrate nucleocytoplasmic transport defects in ALS8 patient fibroblasts.
FigureFigureFigure
Nucleocytoplasmic transport defect in a North American patient with ALS8
Guber, Schindler, Budron et al
Ann Clin Transl Neurol (2018)
AI Summary: OriGene’s Ran-GFP plasmid (RG208738) was used to transfect fibroblasts, enabling the researchers to assess nucleocytoplasmic transport defects in ALS8 patient cells.
Snippet: Image quantification of the nuclear-to- cytoplasmic ratio of Ran, and nuclear TDP-43 was per- formed with ImageJ. All image analyses were performed blinded. Fibroblasts transfected with Ran-GFP plasmid RG208738 (Origene) were collected after 24 h. Statistical
Showing 1-2 of 2 papers.
