TBX3 (NM_016569) Human Tagged ORF Clone

SKU RG206829

TBX3 (tGFP-tagged) - Human T-box 3 (TBX3), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: TBX3
• Synonyms: TBX3-ISO; UMS; XHL
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG206829 representing NM_016569; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGAGCCTCTCCATGAGAGATCCGGTCATTCCTGGGACAAGCATGGCCTACCATCCGTTCCTACCTCACC; GGGCGCCGGACTTCGCCATGAGCGCGGTGCTGGGTCACCAGCCGCCGTTCTTCCCCGCGCTGACGCTGCC; TCCCAACGGCGCGGCGGCGCTCTCGCTGCCGGGCGCCCTGGCCAAGCCGATCATGGATCAATTGGTGGGG; GCGGCCGAGACCGGCATCCCGTTCTCCTCCCTGGGGCCCCAGGCGCATCTGAGGCCTTTGAAGACCATGG; AGCCCGAAGAAGAGGTGGAGGACGACCCCAAGGTGCACCTGGAGGCTAAAGAACTTTGGGATCAGTTTCA; CAAGCGGGGCACCGAGATGGTCATTACCAAGTCGGGAAGGCGAATGTTTCCTCCATTTAAAGTGAGATGT; TCTGGGCTGGATAAAAAAGCCAAATACATTTTATTGATGGACATTATAGCTGCTGATGACTGTCGTTATA; AATTTCACAATTCTCGGTGGATGGTGGCTGGTAAGGCCGACCCCGAAATGCCAAAGAGGATGTACATTCA; CCCGGACAGCCCCGCTACTGGGGAACAGTGGATGTCCAAAGTCGTCACTTTCCACAAACTGAAACTCACC; AACAACATTTCAGACAAACATGGATTTACTTTGGCCTTCCCAAGTGATCACGCTACGTGGCAGGGGAATT; ATAGTTTTGGTACTCAGACTATATTGAACTCCATGCACAAATACCAGCCCCGGTTCCACATTGTAAGAGC; CAATGACATCTTGAAACTCCCTTATAGTACATTTCGGACATACTTGTTCCCCGAAACTGAATTCATCGCT; GTGACTGCATACCAGAATGATAAGATAACCCAGTTAAAAATAGACAACAACCCTTTTGCAAAAGGTTTCC; GGGACACTGGAAATGGCCGAAGAGAAAAAAGAAAACAGCTCACCCTGCAGTCCATGAGGGTGTTTGATGA; AAGACACAAAAAGGAGAATGGGACCTCTGATGAGTCCTCCAGTGAACAAGCAGCTTTCAACTGCTTCGCC; CAGGCTTCTTCTCCAGCCGCCTCCACTGTAGGGACATCGAACCTCAAAGATTTATGTCCCAGCGAGGGTG; AGAGCGACGCCGAGGCCGAGAGCAAAGAGGAGCATGGCCCCGAGGCCTGCGACGCGGCCAAGATCTCCAC; CACCACGTCGGAGGAGCCCTGCCGTGACAAGGGCAGCCCCGCGGTCAAGGCTCACCTTTTCGCTGCTGAG; CGGCCCCGGGACAGCGGGCGGCTGGACAAAGCGTCGCCCGACTCACGCCATAGCCCCGCCACCATCTCGT; CCAGCACTCGCGGCCTGGGCGCGGAGGAGCGCAGGAGCCCGGTTCGCGAGGGCACAGCGCCGGCCAAGGT; GGAAGAGGCGCGCGCGCTCCCGGGCAAGGAGGCCTTCGCGCCGCTCACGGTGCAGACGGACGCGGCCGCC; GCGCACCTGGCCCAGGGCCCCCTGCCTGGCCTCGGCTTCGCCCCGGGCCTGGCGGGCCAACAGTTCTTCA; ACGGGCACCCGCTCTTCCTGCACCCCAGCCAGTTTGCCATGGGGGGCGCCTTCTCCAGCATGGCGGCCGC; TGGCATGGGTCCCCTCCTGGCCACGGTTTCTGGGGCCTCCACCGGTGTCTCGGGCCTGGATTCCACGGCC; ATGGCCTCTGCCGCTGCGGCGCAGGGACTGTCCGGGGCGTCCGCGGCCACCCTGCCCTTCCACCTCCAGC; AGCACGTCCTGGCCTCTCAGGGCCTGGCCATGTCCCCTTTCGGAAGCCTGTTCCCTTACCCCTACACGTA; CATGGCCGCAGCGGCGGCCGCCTCCTCTGCGGCAGCCTCCAGCTCGGTGCACCGCCACCCCTTCCTCAAT; CTGAACACCATGCGCCCGCGGCTGCGCTACAGCCCCTACTCCATCCCGGTGCCGGTCCCGGACGGCAGCA; GTCTGCTCACCACCGCCCTGCCCTCCATGGCGGCGGCCGCGGGGCCCCTGGACGGCAAAGTCGCCGCCCT; GGCCGCCAGCCCGGCCTCGGTGGCAGTGGACTCGGGCTCTGAACTCAACAGCCGCTCCTCCACGCTCTCC; TCCAGCTCCATGTCCTTGTCGCCCAAACTCTGCGCGGAGAAAGAGGCGGCCACCAGCGAACTGCAGAGCA; TCCAGCGGTTGGTTAGCGGCTTGGAAGCCAAGCCGGACAGGTCCCGCAGCGCGTCCCCG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG206829 representing NM_016569; Red=Cloning site Green=Tags(s); ; MSLSMRDPVIPGTSMAYHPFLPHRAPDFAMSAVLGHQPPFFPALTLPPNGAAALSLPGALAKPIMDQLVG; AAETGIPFSSLGPQAHLRPLKTMEPEEEVEDDPKVHLEAKELWDQFHKRGTEMVITKSGRRMFPPFKVRC; SGLDKKAKYILLMDIIAADDCRYKFHNSRWMVAGKADPEMPKRMYIHPDSPATGEQWMSKVVTFHKLKLT; NNISDKHGFTLAFPSDHATWQGNYSFGTQTILNSMHKYQPRFHIVRANDILKLPYSTFRTYLFPETEFIA; VTAYQNDKITQLKIDNNPFAKGFRDTGNGRREKRKQLTLQSMRVFDERHKKENGTSDESSSEQAAFNCFA; QASSPAASTVGTSNLKDLCPSEGESDAEAESKEEHGPEACDAAKISTTTSEEPCRDKGSPAVKAHLFAAE; RPRDSGRLDKASPDSRHSPATISSSTRGLGAEERRSPVREGTAPAKVEEARALPGKEAFAPLTVQTDAAA; AHLAQGPLPGLGFAPGLAGQQFFNGHPLFLHPSQFAMGGAFSSMAAAGMGPLLATVSGASTGVSGLDSTA; MASAAAAQGLSGASAATLPFHLQQHVLASQGLAMSPFGSLFPYPYTYMAAAAAASSAAASSSVHRHPFLN; LNTMRPRLRYSPYSIPVPVPDGSSLLTTALPSMAAAAGPLDGKVAALAASPASVAVDSGSELNSRSSTLS; SSSMSLSPKLCAEKEAATSELQSIQRLVSGLEAKPDRSRSASP; ; TRTRPLE - GFP Tag - V

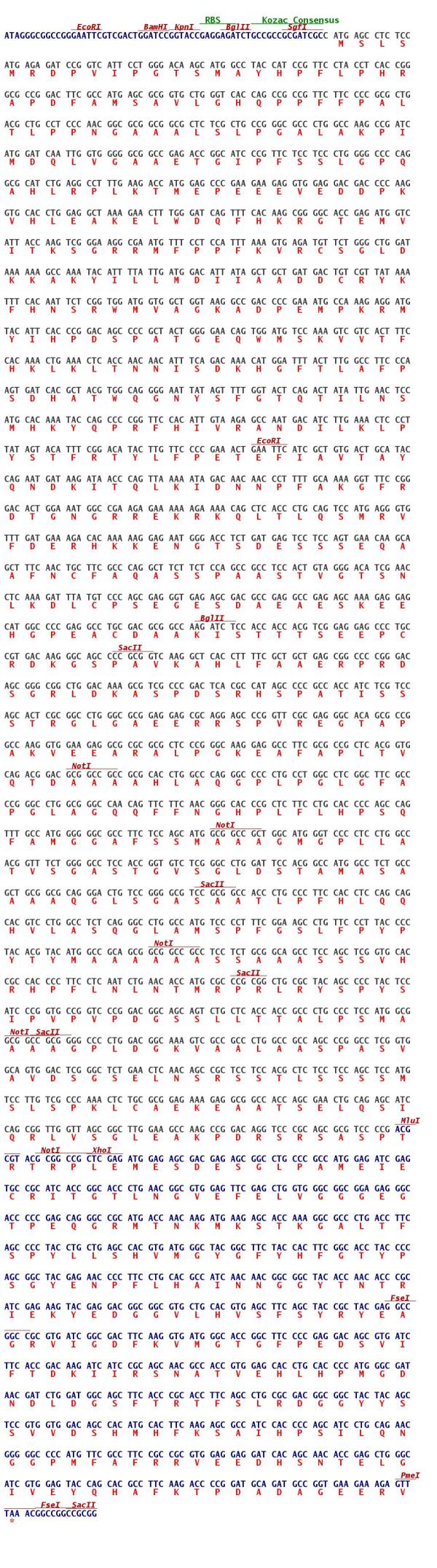

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_016569
• ORF Size: 2229 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_016569.4
• RefSeq Size: 4814 bp
• RefSeq ORF: 2232 bp
• Locus ID: 6926
• UniProt ID: O15119
• Cytogenetics: 12q24.21
• Domains: T-box
• Protein Families: Druggable Genome, Transcription Factors
• Summary: This gene is a member of a phylogenetically conserved family of genes that share a common DNA-binding domain, the T-box. T-box genes encode transcription factors involved in the regulation of developmental processes. This protein is a transcriptional repressor and is thought to play a role in the anterior/posterior axis of the tetrapod forelimb. Mutations in this gene cause ulnar-mammary syndrome, affecting limb, apocrine gland, tooth, hair, and genital development. Alternative splicing of this gene results in three transcript variants encoding different isoforms; however, the full length nature of one variant has not been determined. [provided by RefSeq, Jul 2008]
