IL2 Receptor beta (IL2RB) (NM_000878) Human Tagged ORF Clone

SKU RG206591

IL2RB (tGFP-tagged) - Human interleukin 2 receptor, beta (IL2RB)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: IL2 Receptor beta
• Synonyms: CD122; IL15RB; IMD63; P70-75
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG206591 representing NM_000878; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGCCCCTGCTCTGTCCTGGCGTCTGCCCCTCCTCATCCTCCTCCTGCCCCTGGCTACCTCTTGGG; CATCTGCAGCGGTGAATGGCACTTCCCAGTTCACATGCTTCTACAACTCGAGAGCCAACATCTCCTGTGT; CTGGAGCCAAGATGGGGCTCTGCAGGACACTTCCTGCCAAGTCCATGCCTGGCCGGACAGACGGCGGTGG; AACCAAACCTGTGAGCTGCTCCCCGTGAGTCAAGCATCCTGGGCCTGCAACCTGATCCTCGGAGCCCCAG; ATTCTCAGAAACTGACCACAGTTGACATCGTCACCCTGAGGGTGCTGTGCCGTGAGGGGGTGCGATGGAG; GGTGATGGCCATCCAGGACTTCAAGCCCTTTGAGAACCTTCGCCTGATGGCCCCCATCTCCCTCCAAGTT; GTCCACGTGGAGACCCACAGATGCAACATAAGCTGGGAAATCTCCCAAGCCTCCCACTACTTTGAAAGAC; ACCTGGAGTTCGAGGCCCGGACGCTGTCCCCAGGCCACACCTGGGAGGAGGCCCCCCTGCTGACTCTCAA; GCAGAAGCAGGAATGGATCTGCCTGGAGACGCTCACCCCAGACACCCAGTATGAGTTTCAGGTGCGGGTC; AAGCCTCTGCAAGGCGAGTTCACGACCTGGAGCCCCTGGAGCCAGCCCCTGGCCTTCAGGACAAAGCCTG; CAGCCCTTGGGAAGGACACCATTCCGTGGCTCGGCCACCTCCTCGTGGGTCTCAGCGGGGCTTTTGGCTT; CATCATCTTAGTGTACTTGCTGATCAACTGCAGGAACACCGGGCCATGGCTGAAGAAGGTCCTGAAGTGT; AACACCCCAGACCCCTCGAAGTTCTTTTCCCAGCTGAGCTCAGAGCATGGAGGAGACGTCCAGAAGTGGC; TCTCTTCGCCCTTCCCCTCATCGTCCTTCAGCCCTGGCGGCCTGGCACCTGAGATCTCGCCACTAGAAGT; GCTGGAGAGGGACAAGGTGACGCAGCTGCTCCTGCAGCAGGACAAGGTGCCTGAGCCCGCATCCTTAAGC; AGCAACCACTCGCTGACCAGCTGCTTCACCAACCAGGGTTACTTCTTCTTCCACCTCCCGGATGCCTTGG; AGATAGAGGCCTGCCAGGTGTACTTTACTTACGACCCCTACTCAGAGGAAGACCCTGATGAGGGTGTGGC; CGGGGCACCCACAGGGTCTTCCCCCCAACCCCTGCAGCCTCTGTCAGGGGAGGACGACGCCTACTGCACC; TTCCCCTCCAGGGATGACCTGCTGCTCTTCTCCCCCAGTCTCCTCGGTGGCCCCAGCCCCCCAAGCACTG; CCCCTGGGGGCAGTGGGGCCGGTGAAGAGAGGATGCCCCCTTCTTTGCAAGAAAGAGTCCCCAGAGACTG; GGACCCCCAGCCCCTGGGGCCTCCCACCCCAGGAGTCCCAGACCTGGTGGATTTTCAGCCACCCCCTGAG; CTGGTGCTGCGAGAGGCTGGGGAGGAGGTCCCTGACGCTGGCCCCAGGGAGGGAGTCAGTTTCCCCTGGT; CCAGGCCTCCTGGGCAGGGGGAGTTCAGGGCCCTTAATGCTCGCCTGCCCCTGAACACTGATGCCTACTT; GTCCCTCCAAGAACTCCAGGGTCAGGACCCAACTCACTTGGTG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG206591 representing NM_000878; Red=Cloning site Green=Tags(s); ; MAAPALSWRLPLLILLLPLATSWASAAVNGTSQFTCFYNSRANISCVWSQDGALQDTSCQVHAWPDRRRW; NQTCELLPVSQASWACNLILGAPDSQKLTTVDIVTLRVLCREGVRWRVMAIQDFKPFENLRLMAPISLQV; VHVETHRCNISWEISQASHYFERHLEFEARTLSPGHTWEEAPLLTLKQKQEWICLETLTPDTQYEFQVRV; KPLQGEFTTWSPWSQPLAFRTKPAALGKDTIPWLGHLLVGLSGAFGFIILVYLLINCRNTGPWLKKVLKC; NTPDPSKFFSQLSSEHGGDVQKWLSSPFPSSSFSPGGLAPEISPLEVLERDKVTQLLLQQDKVPEPASLS; SNHSLTSCFTNQGYFFFHLPDALEIEACQVYFTYDPYSEEDPDEGVAGAPTGSSPQPLQPLSGEDDAYCT; FPSRDDLLLFSPSLLGGPSPPSTAPGGSGAGEERMPPSLQERVPRDWDPQPLGPPTPGVPDLVDFQPPPE; LVLREAGEEVPDAGPREGVSFPWSRPPGQGEFRALNARLPLNTDAYLSLQELQGQDPTHLV; ; TRTRPLE - GFP Tag - V

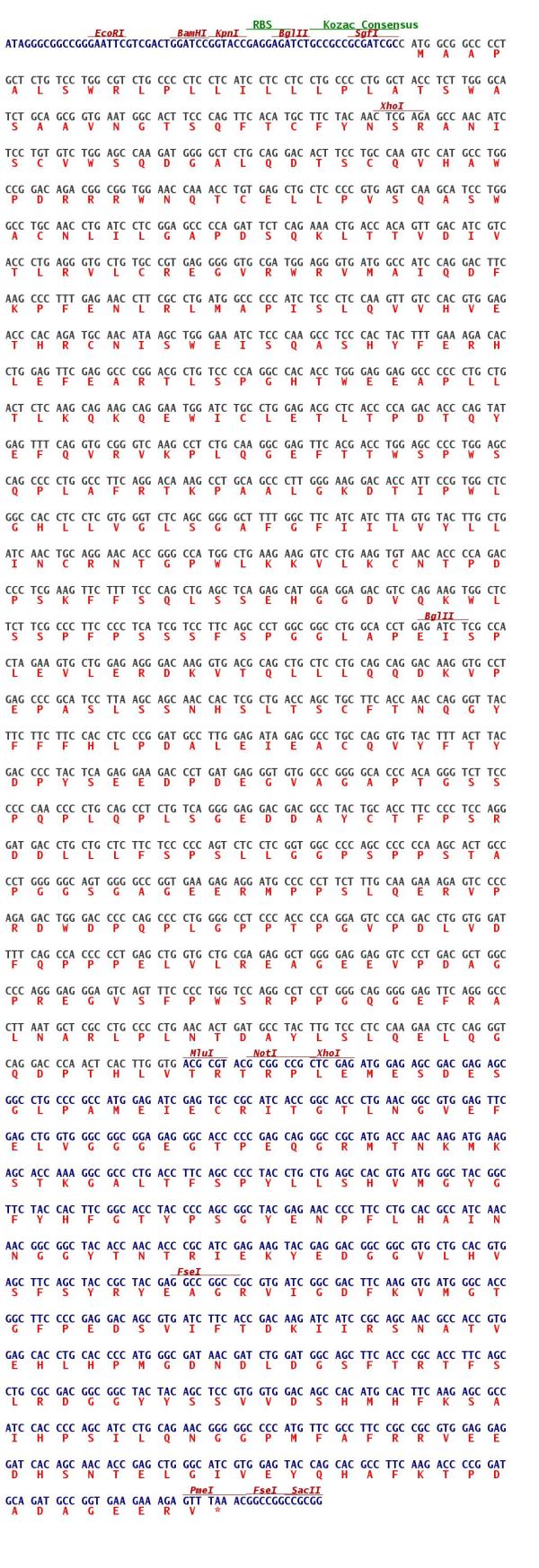

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000878
• ORF Size: 1653 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000878.2, NP_000869.1
• RefSeq Size: 4045 bp
• RefSeq ORF: 1656 bp
• Locus ID: 3560
• UniProt ID: P14784
• Cytogenetics: 22q12.3
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Cytokine-cytokine receptor interaction, Endocytosis, Jak-STAT signaling pathway
• Summary: The interleukin 2 receptor, which is involved in T cell-mediated immune responses, is present in 3 forms with respect to ability to bind interleukin 2. The low affinity form is a monomer of the alpha subunit and is not involved in signal transduction. The intermediate affinity form consists of an alpha/beta subunit heterodimer, while the high affinity form consists of an alpha/beta/gamma subunit heterotrimer. Both the intermediate and high affinity forms of the receptor are involved in receptor-mediated endocytosis and transduction of mitogenic signals from interleukin 2. The protein encoded by this gene represents the beta subunit and is a type I membrane protein. The use of alternative promoters results in multiple transcript variants encoding the same protein. The protein is primarily expressed in the hematopoietic system. The use by some variants of an alternate promoter in an upstream long terminal repeat (LTR) results in placenta-specific expression. [provided by RefSeq, Sep 2016]
