ATP5PB (NM_001688) Human Tagged ORF Clone

SKU RG205088

ATP5F1 (tGFP-tagged) - Human ATP synthase, H+ transporting, mitochondrial Fo complex, subunit B1 (ATP5F1), nuclear gene encoding mitochondrial protein

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: ATP5PB
• Synonyms: ATP5F1; PIG47
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

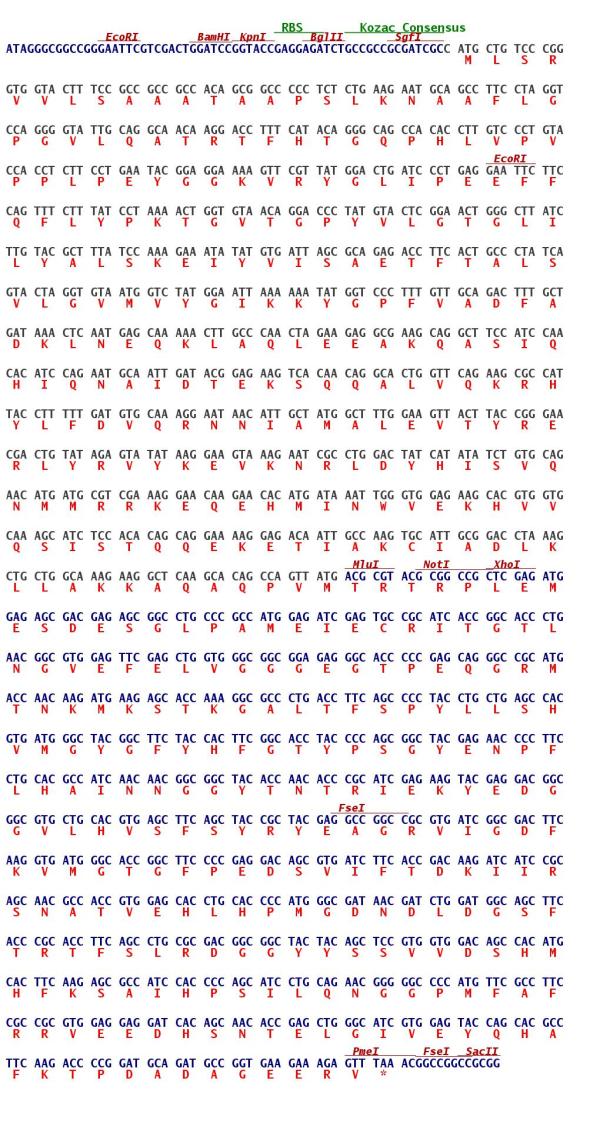

  ORF Nucleotide Sequence

  >RG205088 representing NM_001688; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCTGTCCCGGGTGGTACTTTCCGCCGCCGCCACAGCGGCCCCCTCTCTGAAGAATGCAGCCTTCCTAG; GTCCAGGGGTATTGCAGGCAACAAGGACCTTTCATACAGGGCAGCCACACCTTGTCCCTGTACCACCTCT; TCCTGAATACGGAGGAAAAGTTCGTTATGGACTGATCCCTGAGGAATTCTTCCAGTTTCTTTATCCTAAA; ACTGGTGTAACAGGACCCTATGTACTCGGAACTGGGCTTATCTTGTACGCTTTATCCAAAGAAATATATG; TGATTAGCGCAGAGACCTTCACTGCCCTATCAGTACTAGGTGTAATGGTCTATGGAATTAAAAAATATGG; TCCCTTTGTTGCAGACTTTGCTGATAAACTCAATGAGCAAAAACTTGCCCAACTAGAAGAGGCGAAGCAG; GCTTCCATCCAACACATCCAGAATGCAATTGATACGGAGAAGTCACAACAGGCACTGGTTCAGAAGCGCC; ATTACCTTTTTGATGTGCAAAGGAATAACATTGCTATGGCTTTGGAAGTTACTTACCGGGAACGACTGTA; TAGAGTATATAAGGAAGTAAAGAATCGCCTGGACTATCATATATCTGTGCAGAACATGATGCGTCGAAAG; GAACAAGAACACATGATAAATTGGGTGGAGAAGCACGTGGTGCAAAGCATCTCCACACAGCAGGAAAAGG; AGACAATTGCCAAGTGCATTGCGGACCTAAAGCTGCTGGCAAAGAAGGCTCAAGCACAGCCAGTTATG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG205088 representing NM_001688; Red=Cloning site Green=Tags(s); ; MLSRVVLSAAATAAPSLKNAAFLGPGVLQATRTFHTGQPHLVPVPPLPEYGGKVRYGLIPEEFFQFLYPK; TGVTGPYVLGTGLILYALSKEIYVISAETFTALSVLGVMVYGIKKYGPFVADFADKLNEQKLAQLEEAKQ; ASIQHIQNAIDTEKSQQALVQKRHYLFDVQRNNIAMALEVTYRERLYRVYKEVKNRLDYHISVQNMMRRK; EQEHMINWVEKHVVQSISTQQEKETIAKCIADLKLLAKKAQAQPVM; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001688
• ORF Size: 768 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001688.5
• RefSeq Size: 2116 bp
• RefSeq ORF: 771 bp
• Locus ID: 515
• UniProt ID: P24539
• Cytogenetics: 1p13.2
• Protein Pathways: Alzheimer's disease, Huntington's disease, Metabolic pathways, Oxidative phosphorylation, Parkinson's disease
• Summary: This gene encodes a subunit of mitochondrial ATP synthase. Mitochondrial ATP synthase catalyzes ATP synthesis, utilizing an electrochemical gradient of protons across the inner membrane during oxidative phosphorylation. ATP synthase is composed of two linked multi-subunit complexes: the soluble catalytic core, F1, and the membrane-spanning component, Fo, comprising the proton channel. The catalytic portion of mitochondrial ATP synthase consists of 5 different subunits (alpha, beta, gamma, delta, and epsilon) assembled with a stoichiometry of 3 alpha, 3 beta, and a single representative of the other 3. The proton channel seems to have nine subunits (a, b, c, d, e, f, g, F6 and 8). This gene encodes the b subunit of the proton channel. [provided by RefSeq, Jul 2008]
