GIMAP5 (NM_018384) Human Tagged ORF Clone

SKU RG203978

GIMAP5 (tGFP-tagged) - Human GTPase, IMAP family member 5 (GIMAP5)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: GIMAP5
• Synonyms: HIMAP3; IAN-5; IAN4; IAN4L1; IAN5; IMAP3; IROD
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

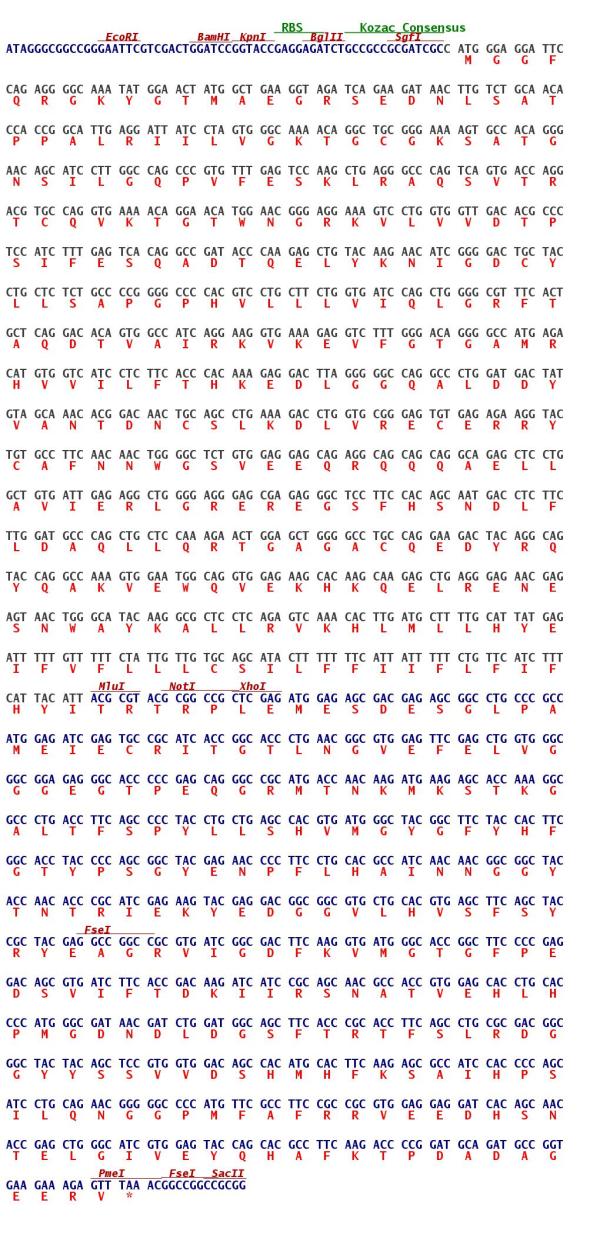

  ORF Nucleotide Sequence

  >RG203978 representing NM_018384; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGGAGGATTCCAGAGGGGCAAATATGGAACTATGGCTGAAGGTAGATCAGAAGATAACTTGTCTGCAA; CACCACCGGCATTGAGGATTATCCTAGTGGGCAAAACAGGCTGCGGGAAAAGTGCCACAGGGAACAGCAT; CCTTGGCCAGCCCGTGTTTGAGTCCAAGCTGAGGGCCCAGTCAGTGACCAGGACGTGCCAGGTGAAAACA; GGAACATGGAACGGGAGGAAAGTCCTGGTGGTTGACACGCCCTCCATCTTTGAGTCACAGGCCGATACCC; AAGAGCTGTACAAGAACATCGGGGACTGCTACCTGCTCTCTGCCCCGGGGCCCCACGTCCTGCTTCTGGT; GATCCAGCTGGGGCGTTTCACTGCTCAGGACACAGTGGCCATCAGGAAGGTGAAAGAGGTCTTTGGGACA; GGGGCCATGAGACATGTGGTCATCCTCTTCACCCACAAAGAGGACTTAGGGGGCCAGGCCCTGGATGACT; ATGTAGCAAACACGGACAACTGCAGCCTGAAAGACCTGGTGCGGGAGTGTGAGAGAAGGTACTGTGCCTT; CAACAACTGGGGCTCTGTGGAGGAGCAGAGGCAGCAGCAGGCAGAGCTCCTGGCTGTGATTGAGAGGCTG; GGGAGGGAGCGAGAGGGCTCCTTCCACAGCAATGACCTCTTCTTGGATGCCCAGCTGCTCCAAAGAACTG; GAGCTGGGGCCTGCCAGGAAGACTACAGGCAGTACCAGGCCAAAGTGGAATGGCAGGTGGAGAAGCACAA; GCAAGAGCTGAGGGAGAACGAGAGTAACTGGGCATACAAGGCGCTCCTCAGAGTCAAACACTTGATGCTT; TTGCATTATGAGATTTTTGTTTTTCTATTGTTGTGCAGCATACTTTTTTTCATTATTTTTCTGTTCATCT; TTCATTACATT; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG203978 representing NM_018384; Red=Cloning site Green=Tags(s); ; MGGFQRGKYGTMAEGRSEDNLSATPPALRIILVGKTGCGKSATGNSILGQPVFESKLRAQSVTRTCQVKT; GTWNGRKVLVVDTPSIFESQADTQELYKNIGDCYLLSAPGPHVLLLVIQLGRFTAQDTVAIRKVKEVFGT; GAMRHVVILFTHKEDLGGQALDDYVANTDNCSLKDLVRECERRYCAFNNWGSVEEQRQQQAELLAVIERL; GREREGSFHSNDLFLDAQLLQRTGAGACQEDYRQYQAKVEWQVEKHKQELRENESNWAYKALLRVKHLML; LHYEIFVFLLLCSILFFIIFLFIFHYI; ; TRTRPLE - GFP Tag - V

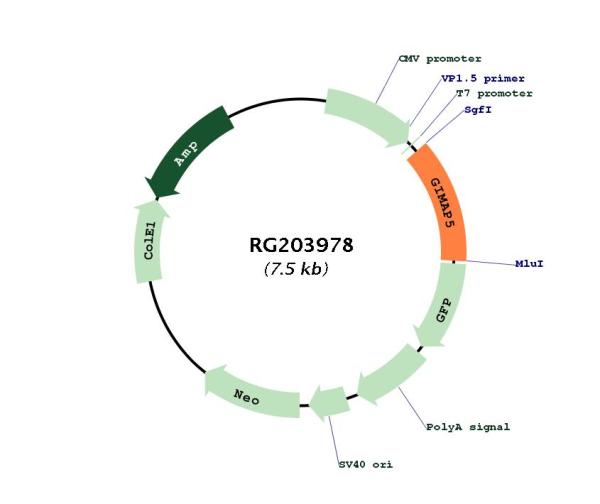

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_018384
• ORF Size: 921 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_018384.4
• RefSeq Size: 1861 bp
• RefSeq ORF: 924 bp
• Locus ID: 55340
• UniProt ID: Q96F15
• Cytogenetics: 7q36.1
• Protein Families: Transmembrane
• Summary: This gene encodes a protein belonging to the GTP-binding superfamily and to the immuno-associated nucleotide (IAN) subfamily of nucleotide-binding proteins. In humans, the IAN subfamily genes are located in a cluster at 7q36.1. This gene encodes an antiapoptotic protein that functions in T-cell survival. Polymorphisms in this gene are associated with systemic lupus erythematosus. Read-through transcription exists between this gene and the neighboring upstream GIMAP1 (GTPase, IMAP family member 1) gene. [provided by RefSeq, Dec 2010]
