NDUFS2 (NM_004550) Human Tagged ORF Clone

SKU RG203485

NDUFS2 (tGFP-tagged) - Human NADH dehydrogenase (ubiquinone) Fe-S protein 2, 49kDa (NADH-coenzyme Q reductase) (NDUFS2), nuclear gene encoding mitochondrial protein, transcript variant 1

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: NDUFS2
• Synonyms: CI-49; MC1DN6
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

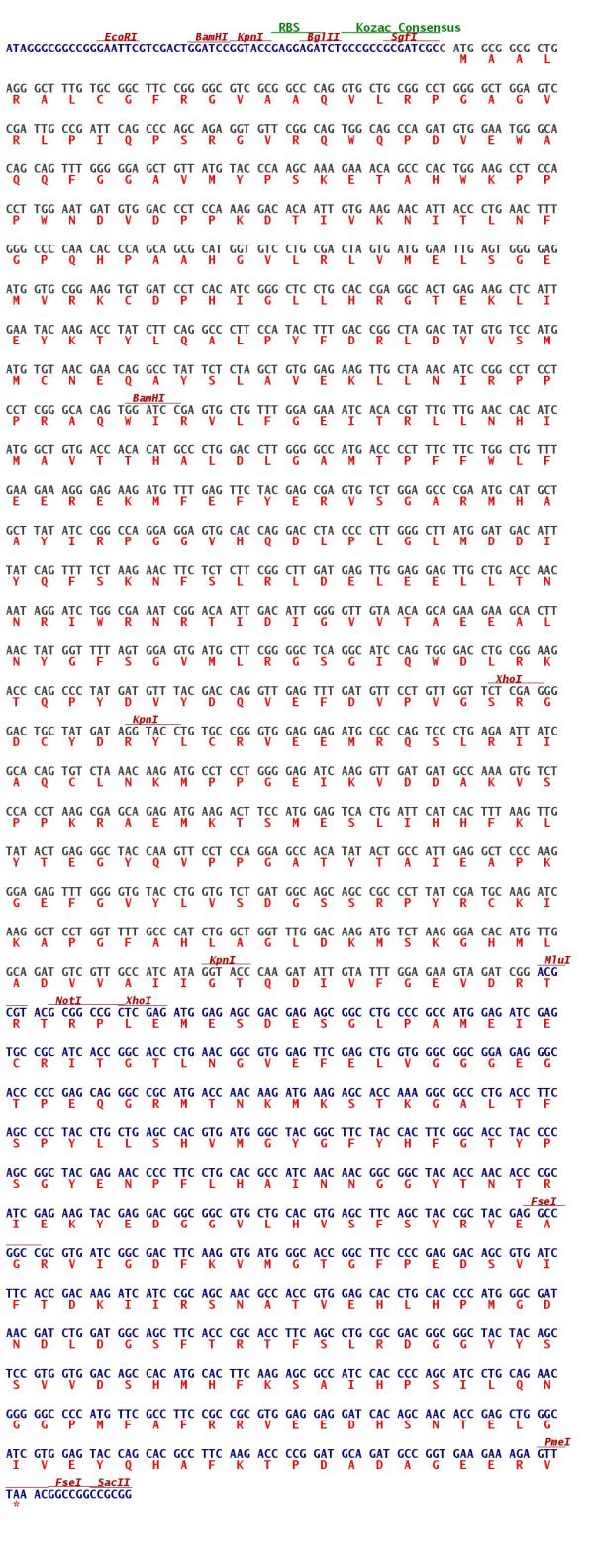

  ORF Nucleotide Sequence

  >RG203485 representing NM_004550; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGCGGCGCTGAGGGCTTTGTGCGGCTTCCGGGGCGTCGCGGCCCAGGTGCTGCGGCCTGGGGCTGGAG; TCCGATTGCCGATTCAGCCCAGCAGAGGTGTTCGGCAGTGGCAGCCAGATGTGGAATGGGCACAGCAGTT; TGGGGGAGCTGTTATGTACCCAAGCAAAGAAACAGCCCACTGGAAGCCTCCACCTTGGAATGATGTGGAC; CCTCCAAAGGACACAATTGTGAAGAACATTACCCTGAACTTTGGGCCCCAACACCCAGCAGCGCATGGTG; TCCTGCGACTAGTGATGGAATTGAGTGGGGAGATGGTGCGGAAGTGTGATCCTCACATCGGGCTCCTGCA; CCGAGGCACTGAGAAGCTCATTGAATACAAGACCTATCTTCAGGCCCTTCCATACTTTGACCGGCTAGAC; TATGTGTCCATGATGTGTAACGAACAGGCCTATTCTCTAGCTGTGGAGAAGTTGCTAAACATCCGGCCTC; CTCCTCGGGCACAGTGGATCCGAGTGCTGTTTGGAGAAATCACACGTTTGTTGAACCACATCATGGCTGT; GACCACACATGCCCTGGACCTTGGGGCCATGACCCCTTTCTTCTGGCTGTTTGAAGAAAGGGAGAAGATG; TTTGAGTTCTACGAGCGAGTGTCTGGAGCCCGAATGCATGCTGCTTATATCCGGCCAGGAGGAGTGCACC; AGGACCTACCCCTTGGGCTTATGGATGACATTTATCAGTTTTCTAAGAACTTCTCTCTTCGGCTTGATGA; GTTGGAGGAGTTGCTGACCAACAATAGGATCTGGCGAAATCGGACAATTGACATTGGGGTTGTAACAGCA; GAAGAAGCACTTAACTATGGTTTTAGTGGAGTGATGCTTCGGGGCTCAGGCATCCAGTGGGACCTGCGGA; AGACCCAGCCCTATGATGTTTACGACCAGGTTGAGTTTGATGTTCCTGTTGGTTCTCGAGGGGACTGCTA; TGATAGGTACCTGTGCCGGGTGGAGGAGATGCGCCAGTCCCTGAGAATTATCGCACAGTGTCTAAACAAG; ATGCCTCCTGGGGAGATCAAGGTTGATGATGCCAAAGTGTCTCCACCTAAGCGAGCAGAGATGAAGACTT; CCATGGAGTCACTGATTCATCACTTTAAGTTGTATACTGAGGGCTACCAAGTTCCTCCAGGAGCCACATA; TACTGCCATTGAGGCTCCCAAGGGAGAGTTTGGGGTGTACCTGGTGTCTGATGGCAGCAGCCGCCCTTAT; CGATGCAAGATCAAGGCTCCTGGTTTTGCCCATCTGGCTGGTTTGGACAAGATGTCTAAGGGACACATGT; TGGCAGATGTCGTTGCCATCATAGGTACCCAAGATATTGTATTTGGAGAAGTAGATCGG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG203485 representing NM_004550; Red=Cloning site Green=Tags(s); ; MAALRALCGFRGVAAQVLRPGAGVRLPIQPSRGVRQWQPDVEWAQQFGGAVMYPSKETAHWKPPPWNDVD; PPKDTIVKNITLNFGPQHPAAHGVLRLVMELSGEMVRKCDPHIGLLHRGTEKLIEYKTYLQALPYFDRLD; YVSMMCNEQAYSLAVEKLLNIRPPPRAQWIRVLFGEITRLLNHIMAVTTHALDLGAMTPFFWLFEEREKM; FEFYERVSGARMHAAYIRPGGVHQDLPLGLMDDIYQFSKNFSLRLDELEELLTNNRIWRNRTIDIGVVTA; EEALNYGFSGVMLRGSGIQWDLRKTQPYDVYDQVEFDVPVGSRGDCYDRYLCRVEEMRQSLRIIAQCLNK; MPPGEIKVDDAKVSPPKRAEMKTSMESLIHHFKLYTEGYQVPPGATYTAIEAPKGEFGVYLVSDGSSRPY; RCKIKAPGFAHLAGLDKMSKGHMLADVVAIIGTQDIVFGEVDR; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_004550
• ORF Size: 1389 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_004550.4
• RefSeq Size: 2061 bp
• RefSeq ORF: 1392 bp
• Locus ID: 4720
• UniProt ID: O75306
• Cytogenetics: 1q23.3
• Domains: complex1_49Kd
• Protein Pathways: Alzheimer's disease, Huntington's disease, Metabolic pathways, Oxidative phosphorylation, Parkinson's disease
• Summary: The protein encoded by this gene is a core subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (complex I). Mammalian mitochondrial complex I is composed of at least 43 different subunits, 7 of which are encoded by the mitochondrial genome, and the rest are the products of nuclear genes. The iron-sulfur protein fraction of complex I is made up of 7 subunits, including this gene product. Complex I catalyzes the NADH oxidation with concomitant ubiquinone reduction and proton ejection out of the mitochondria. Mutations in this gene are associated with mitochondrial complex I deficiency. Alternatively spliced transcript variants encoding different isoforms have been found for this gene.[provided by RefSeq, Oct 2009]
