emopamil binding protein (EBP) (NM_006579) Human Tagged ORF Clone

SKU RG201706

EBP (tGFP-tagged) - Human emopamil binding protein (sterol isomerase) (EBP)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: emopamil binding protein
• Synonyms: CDPX2; CHO2; CPX; CPXD; MEND
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

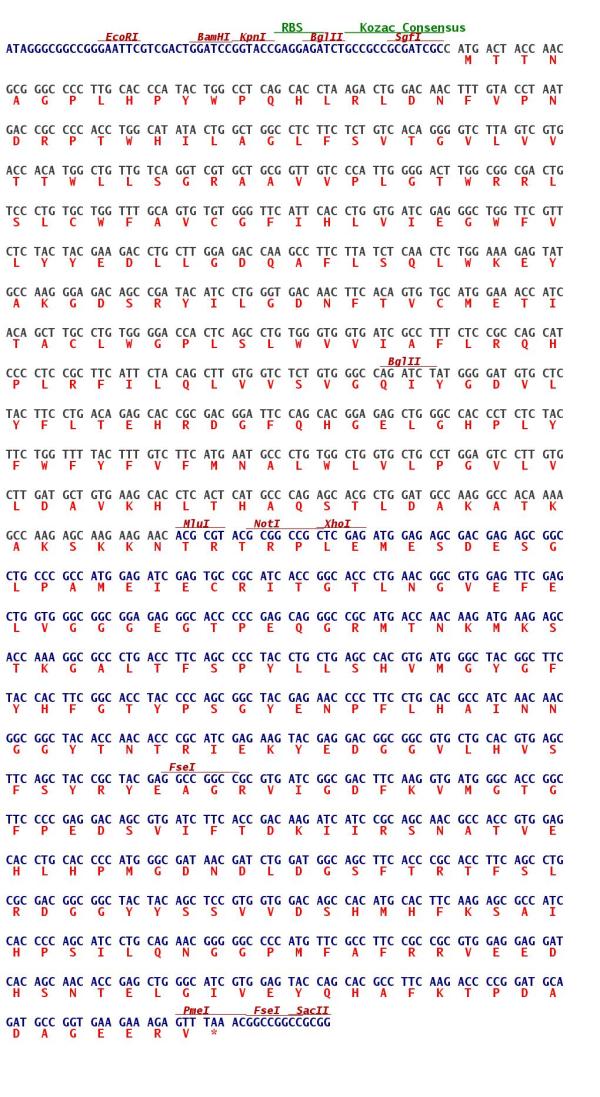

  ORF Nucleotide Sequence

  >RG201706 representing NM_006579; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGACTACCAACGCGGGCCCCTTGCACCCATACTGGCCTCAGCACCTAAGACTGGACAACTTTGTACCTA; ATGACCGCCCCACCTGGCATATACTGGCTGGCCTCTTCTCTGTCACAGGGGTCTTAGTCGTGACCACATG; GCTGTTGTCAGGTCGTGCTGCGGTTGTCCCATTGGGGACTTGGCGGCGACTGTCCCTGTGCTGGTTTGCA; GTGTGTGGGTTCATTCACCTGGTGATCGAGGGCTGGTTCGTTCTCTACTACGAAGACCTGCTTGGAGACC; AAGCCTTCTTATCTCAACTCTGGAAAGAGTATGCCAAGGGAGACAGCCGATACATCCTGGGTGACAACTT; CACAGTGTGCATGGAAACCATCACAGCTTGCCTGTGGGGACCACTCAGCCTGTGGGTGGTGATCGCCTTT; CTCCGCCAGCATCCCCTCCGCTTCATTCTACAGCTTGTGGTCTCTGTGGGCCAGATCTATGGGGATGTGC; TCTACTTCCTGACAGAGCACCGCGACGGATTCCAGCACGGAGAGCTGGGCCACCCTCTCTACTTCTGGTT; TTACTTTGTCTTCATGAATGCCCTGTGGCTGGTGCTGCCTGGAGTCCTTGTGCTTGATGCTGTGAAGCAC; CTCACTCATGCCCAGAGCACGCTGGATGCCAAGGCCACAAAAGCCAAGAGCAAGAAGAAC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG201706 representing NM_006579; Red=Cloning site Green=Tags(s); ; MTTNAGPLHPYWPQHLRLDNFVPNDRPTWHILAGLFSVTGVLVVTTWLLSGRAAVVPLGTWRRLSLCWFA; VCGFIHLVIEGWFVLYYEDLLGDQAFLSQLWKEYAKGDSRYILGDNFTVCMETITACLWGPLSLWVVIAF; LRQHPLRFILQLVVSVGQIYGDVLYFLTEHRDGFQHGELGHPLYFWFYFVFMNALWLVLPGVLVLDAVKH; LTHAQSTLDAKATKAKSKKN; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006579
• ORF Size: 690 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006579.3
• RefSeq Size: 1073 bp
• RefSeq ORF: 693 bp
• Locus ID: 10682
• UniProt ID: Q15125
• Cytogenetics: Xp11.23
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Metabolic pathways, Steroid biosynthesis
• Summary: The protein encoded by this gene is an integral membrane protein of the endoplasmic reticulum. It is a high affinity binding protein for the antiischemic phenylalkylamine Ca2+ antagonist [3H]emopamil and the photoaffinity label [3H]azidopamil. It is similar to sigma receptors and may be a member of a superfamily of high affinity drug-binding proteins in the endoplasmic reticulum of different tissues. This protein shares structural features with bacterial and eukaryontic drug transporting proteins. It has four putative transmembrane segments and contains two conserved glutamate residues which may be involved in the transport of cationic amphiphilics. Another prominent feature of this protein is its high content of aromatic amino acid residues (>23%) in its transmembrane segments. These aromatic amino acid residues have been suggested to be involved in the drug transport by the P-glycoprotein. Mutations in this gene cause Chondrodysplasia punctata 2 (CDPX2; also known as Conradi-Hunermann syndrome). [provided by RefSeq, Jul 2008]
