MCM5 (NM_006739) Human Tagged ORF Clone

SKU RG201668

MCM5 (tGFP-tagged) - Human minichromosome maintenance complex component 5 (MCM5)

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: MCM5
• Synonyms: CDC46; MGORS8; P1-CDC46
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RG201668 representing NM_006739; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCGGGATTCGACGATCCTGGCATTTTCTACAGCGACAGCTTCGGGGGCGACGCCCAGGCCGACGAGG; GGCAGGCCCGCAAATCGCAGCTGCAGAGGCGCTTCAAGGAGTTCCTGCGGCAGTACCGAGTGGGCACCGA; CCGCACGGGCTTCACCTTCAAATACAGGGATGAACTCAAGCGGCATTACAACCTGGGGGAGTACTGGATT; GAGGTGGAGATGGAGGATCTGGCCAGCTTTGATGAGGACCTGGCCGACTACTTGTACAAGCAGCCAGCCG; AGCACCTGCAGCTGCTGGAGGAAGCTGCCAAGGAGGTAGCTGATGAGGTGACCCGGCCCCGGCCTTCTGG; GGAGGAGGTGCTCCAGGACATCCAGGTCATGCTCAAGTCGGACGCCAGCCCTTCCAGCATTCGTAGCCTG; AAGTCGGACATGATGTCACACCTGGTGAAGATCCCTGGCATCATCATCGCGGCCTCTGCGGTCCGTGCCA; AGGCCACCCGCATCTCTATCCAGTGCCGCAGCTGCCGCAACACCCTCACCAACATTGCCATGCGCCCTGG; CCTCGAGGGCTATGCCCTGCCCAGGAAGTGCAACACAGATCAGGCTGGGCGCCCCAAATGCCCATTGGAC; CCGTACTTCATCATGCCCGACAAATGCAAATGCGTGGACTTCCAGACCCTGAAGCTGCAGGAGCTGCCTG; ATGCAGTCCCCCACGGGGAGATGCCCAGACACATGCAGCTCTACTGCGACAGGTACCTGTGTGACAAGGT; CGTCCCTGGGAACAGGGTTACCATCATGGGCATCTACTCCATCAAGAAGTTTGGCCTGACCACCAGCAGG; GGCCGTGACAGGGTGGGCGTGGGCATCCGAAGCTCCTACATCCGTGTCCTGGGCATCCAGGTGGACACAG; ATGGCTCTGGCCGCAGCTTTGCTGGGGCCGTGAGCCCCCAGGAGGAGGAGGAGTTCCGTCGCCTGGCTGC; CCTCCCAAATGTCTATGAGGTCATCTCCAAGAGCATCGCCCCCTCCATCTTTGGGGGCACAGACATGAAG; AAGGCCATTGCCTGCCTGCTCTTTGGGGGCTCCCGAAAGAGGCTCCCTGATGGACTTACTCGCCGAGGAG; ACATCAACCTGCTGATGCTAGGGGACCCTGGGACAGCCAAGTCCCAGCTTCTGAAGTTTGTGGAGAAGTG; TTCTCCCATTGGGGTATACACGTCTGGGAAAGGCAGCAGCGCAGCTGGACTGACAGCCTCGGTGATGAGG; GACCCTTCGTCCCGGAATTTCATCATGGAGGGCGGAGCCATGGTCCTGGCCGATGGTGGGGTCGTCTGTA; TTGACGAGTTTGACAAGATGCGAGAAGATGACCGTGTGGCAATCCACGAAGCCATGGAGCAGCAGACCAT; CTCTATCGCCAAGGCTGGGATCACCACCACCCTGAACTCCCGCTGCTCCGTCCTGGCTGCTGCCAACTCA; GTGTTCGGCCGCTGGGATGAGACGAAGGGGGAGGACAACATTGACTTCATGCCCACCATCTTGTCGCGCT; TCGACATGATCTTCATCGTCAAGGATGAGCACAATGAGGAGAGGGATGTGATGCTGGCCAAGCATGTCAT; CACTCTGCACGTGAGCGCACTGACACAGACACAGGCTGTGGAGGGCGAGATTGACCTGGCCAAGCTGAAG; AAGTTTATTGCCTACTGCCGAGTGAAATGTGGCCCCCGGCTGTCAGCAGAGGCTGCAGAGAAACTGAAGA; ACCGCTACATCATCATGCGGAGCGGGGCCCGTCAGCACGAGAGGGACAGTGACCGCCGCTCCAGCATCCC; CATCACTGTGCGGCAGCTGGAGGCCATTGTGCGCATCGCGGAAGCCCTCAGCAAGATGAAGCTGCAGCCC; TTCGCCACAGAGGCAGATGTGGAGGAGGCCCTGCGGCTCTTCCAAGTGTCCACGTTGGATGCTGCCTTGT; CCGGTACCCTGTCAGGGGTGGAGGGCTTCACCAGCCAGGAGGACCAGGAGATGCTGAGCCGCATCGAGAA; GCAGCTCAAGCGCCGCTTTGCCATTGGCTCCCAGGTGTCTGAGCACAGCATCATCAAGGACTTCACCAAG; CAGAAATACCCGGAGCACGCCATCCACAAGGTGCTGCAGCTCATGCTGCGGCGCGGCGAGATCCAGCATC; GCATGCAGCGCAAGGTTCTCTACCGCCTCAAG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG201668 representing NM_006739; Red=Cloning site Green=Tags(s); ; MSGFDDPGIFYSDSFGGDAQADEGQARKSQLQRRFKEFLRQYRVGTDRTGFTFKYRDELKRHYNLGEYWI; EVEMEDLASFDEDLADYLYKQPAEHLQLLEEAAKEVADEVTRPRPSGEEVLQDIQVMLKSDASPSSIRSL; KSDMMSHLVKIPGIIIAASAVRAKATRISIQCRSCRNTLTNIAMRPGLEGYALPRKCNTDQAGRPKCPLD; PYFIMPDKCKCVDFQTLKLQELPDAVPHGEMPRHMQLYCDRYLCDKVVPGNRVTIMGIYSIKKFGLTTSR; GRDRVGVGIRSSYIRVLGIQVDTDGSGRSFAGAVSPQEEEEFRRLAALPNVYEVISKSIAPSIFGGTDMK; KAIACLLFGGSRKRLPDGLTRRGDINLLMLGDPGTAKSQLLKFVEKCSPIGVYTSGKGSSAAGLTASVMR; DPSSRNFIMEGGAMVLADGGVVCIDEFDKMREDDRVAIHEAMEQQTISIAKAGITTTLNSRCSVLAAANS; VFGRWDETKGEDNIDFMPTILSRFDMIFIVKDEHNEERDVMLAKHVITLHVSALTQTQAVEGEIDLAKLK; KFIAYCRVKCGPRLSAEAAEKLKNRYIIMRSGARQHERDSDRRSSIPITVRQLEAIVRIAEALSKMKLQP; FATEADVEEALRLFQVSTLDAALSGTLSGVEGFTSQEDQEMLSRIEKQLKRRFAIGSQVSEHSIIKDFTK; QKYPEHAIHKVLQLMLRRGEIQHRMQRKVLYRLK; ; TRTRPLE - GFP Tag - V

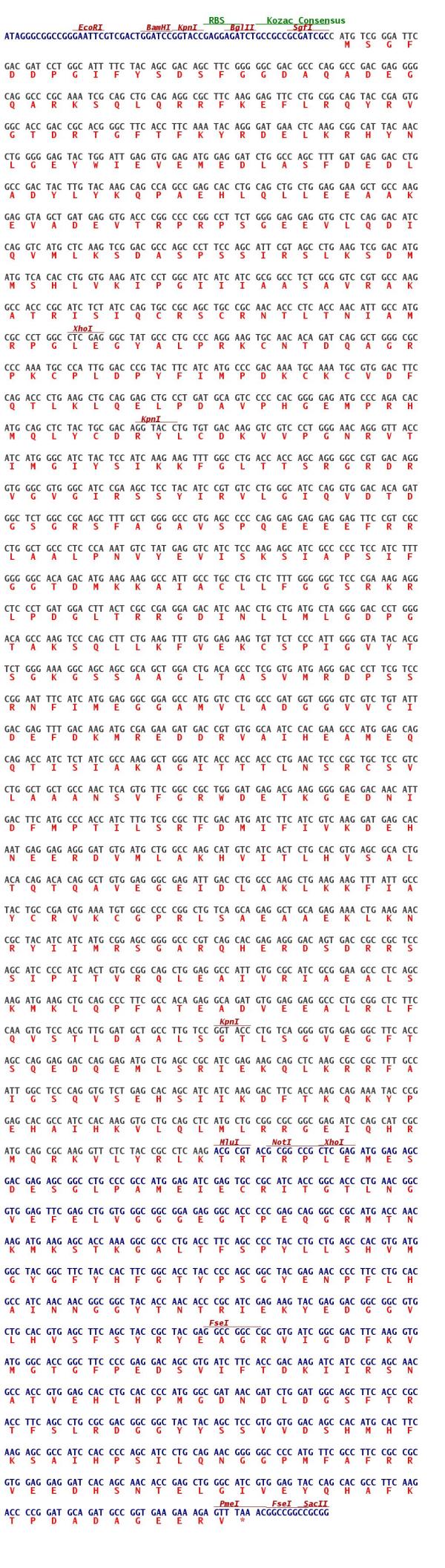

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006739
• ORF Size: 2202 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006739.2, NP_006730.2
• RefSeq Size: 2548 bp
• RefSeq ORF: 2205 bp
• Locus ID: 4174
• UniProt ID: P33992
• Cytogenetics: 22q12.3
• Domains: MCM
• Protein Families: Stem cell - Pluripotency, Transcription Factors
• Protein Pathways: Cell cycle, DNA replication
• Summary: The protein encoded by this gene is structurally very similar to the CDC46 protein from S. cerevisiae, a protein involved in the initiation of DNA replication. The encoded protein is a member of the MCM family of chromatin-binding proteins and can interact with at least two other members of this family. The encoded protein is upregulated in the transition from the G0 to G1/S phase of the cell cycle and may actively participate in cell cycle regulation. [provided by RefSeq, Jul 2008]
