Melanoma gp100 (PMEL) (NM_006928) Human Tagged ORF Clone

SKU RG200663

PMEL (tGFP-tagged) - Human premelanosome protein (PMEL), transcript variant 3

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: Melanoma gp100
• Synonyms: D12S53E; gp100; ME20; ME20-M; ME20M; P1; P100; PMEL17; SI; SIL; SILV
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

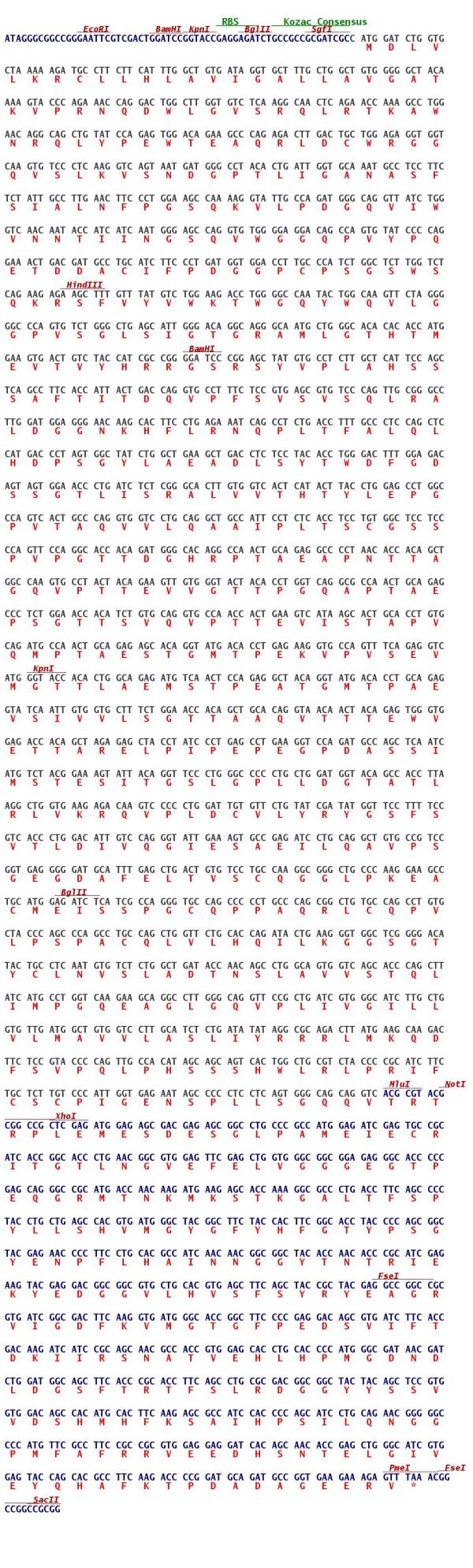

  ORF Nucleotide Sequence

  >RG200663 representing NM_006928; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGGATCTGGTGCTAAAAAGATGCCTTCTTCATTTGGCTGTGATAGGTGCTTTGCTGGCTGTGGGGGCTA; CAAAAGTACCCAGAAACCAGGACTGGCTTGGTGTCTCAAGGCAACTCAGAACCAAAGCCTGGAACAGGCA; GCTGTATCCAGAGTGGACAGAAGCCCAGAGACTTGACTGCTGGAGAGGTGGTCAAGTGTCCCTCAAGGTC; AGTAATGATGGGCCTACACTGATTGGTGCAAATGCCTCCTTCTCTATTGCCTTGAACTTCCCTGGAAGCC; AAAAGGTATTGCCAGATGGGCAGGTTATCTGGGTCAACAATACCATCATCAATGGGAGCCAGGTGTGGGG; AGGACAGCCAGTGTATCCCCAGGAAACTGACGATGCCTGCATCTTCCCTGATGGTGGACCTTGCCCATCT; GGCTCTTGGTCTCAGAAGAGAAGCTTTGTTTATGTCTGGAAGACCTGGGGCCAATACTGGCAAGTTCTAG; GGGGCCCAGTGTCTGGGCTGAGCATTGGGACAGGCAGGGCAATGCTGGGCACACACACCATGGAAGTGAC; TGTCTACCATCGCCGGGGATCCCGGAGCTATGTGCCTCTTGCTCATTCCAGCTCAGCCTTCACCATTACT; GACCAGGTGCCTTTCTCCGTGAGCGTGTCCCAGTTGCGGGCCTTGGATGGAGGGAACAAGCACTTCCTGA; GAAATCAGCCTCTGACCTTTGCCCTCCAGCTCCATGACCCTAGTGGCTATCTGGCTGAAGCTGACCTCTC; CTACACCTGGGACTTTGGAGACAGTAGTGGAACCCTGATCTCTCGGGCACTTGTGGTCACTCATACTTAC; CTGGAGCCTGGCCCAGTCACTGCCCAGGTGGTCCTGCAGGCTGCCATTCCTCTCACCTCCTGTGGCTCCT; CCCCAGTTCCAGGCACCACAGATGGGCACAGGCCAACTGCAGAGGCCCCTAACACCACAGCTGGCCAAGT; GCCTACTACAGAAGTTGTGGGTACTACACCTGGTCAGGCGCCAACTGCAGAGCCCTCTGGAACCACATCT; GTGCAGGTGCCAACCACTGAAGTCATAAGCACTGCACCTGTGCAGATGCCAACTGCAGAGAGCACAGGTA; TGACACCTGAGAAGGTGCCAGTTTCAGAGGTCATGGGTACCACACTGGCAGAGATGTCAACTCCAGAGGC; TACAGGTATGACACCTGCAGAGGTATCAATTGTGGTGCTTTCTGGAACCACAGCTGCACAGGTAACAACT; ACAGAGTGGGTGGAGACCACAGCTAGAGAGCTACCTATCCCTGAGCCTGAAGGTCCAGATGCCAGCTCAA; TCATGTCTACGGAAAGTATTACAGGTTCCCTGGGCCCCCTGCTGGATGGTACAGCCACCTTAAGGCTGGT; GAAGAGACAAGTCCCCCTGGATTGTGTTCTGTATCGATATGGTTCCTTTTCCGTCACCCTGGACATTGTC; CAGGGTATTGAAAGTGCCGAGATCCTGCAGGCTGTGCCGTCCGGTGAGGGGGATGCATTTGAGCTGACTG; TGTCCTGCCAAGGCGGGCTGCCCAAGGAAGCCTGCATGGAGATCTCATCGCCAGGGTGCCAGCCCCCTGC; CCAGCGGCTGTGCCAGCCTGTGCTACCCAGCCCAGCCTGCCAGCTGGTTCTGCACCAGATACTGAAGGGT; GGCTCGGGGACATACTGCCTCAATGTGTCTCTGGCTGATACCAACAGCCTGGCAGTGGTCAGCACCCAGC; TTATCATGCCTGGTCAAGAAGCAGGCCTTGGGCAGGTTCCGCTGATCGTGGGCATCTTGCTGGTGTTGAT; GGCTGTGGTCCTTGCATCTCTGATATATAGGCGCAGACTTATGAAGCAAGACTTCTCCGTACCCCAGTTG; CCACATAGCAGCAGTCACTGGCTGCGTCTACCCCGCATCTTCTGCTCTTGTCCCATTGGTGAGAATAGCC; CCCTCCTCAGTGGGCAGCAGGTC; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG200663 representing NM_006928; Red=Cloning site Green=Tags(s); ; MDLVLKRCLLHLAVIGALLAVGATKVPRNQDWLGVSRQLRTKAWNRQLYPEWTEAQRLDCWRGGQVSLKV; SNDGPTLIGANASFSIALNFPGSQKVLPDGQVIWVNNTIINGSQVWGGQPVYPQETDDACIFPDGGPCPS; GSWSQKRSFVYVWKTWGQYWQVLGGPVSGLSIGTGRAMLGTHTMEVTVYHRRGSRSYVPLAHSSSAFTIT; DQVPFSVSVSQLRALDGGNKHFLRNQPLTFALQLHDPSGYLAEADLSYTWDFGDSSGTLISRALVVTHTY; LEPGPVTAQVVLQAAIPLTSCGSSPVPGTTDGHRPTAEAPNTTAGQVPTTEVVGTTPGQAPTAEPSGTTS; VQVPTTEVISTAPVQMPTAESTGMTPEKVPVSEVMGTTLAEMSTPEATGMTPAEVSIVVLSGTTAAQVTT; TEWVETTARELPIPEPEGPDASSIMSTESITGSLGPLLDGTATLRLVKRQVPLDCVLYRYGSFSVTLDIV; QGIESAEILQAVPSGEGDAFELTVSCQGGLPKEACMEISSPGCQPPAQRLCQPVLPSPACQLVLHQILKG; GSGTYCLNVSLADTNSLAVVSTQLIMPGQEAGLGQVPLIVGILLVLMAVVLASLIYRRRLMKQDFSVPQL; PHSSSHWLRLPRIFCSCPIGENSPLLSGQQV; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_006928
• ORF Size: 1983 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_006928.3, NP_008859.1
• RefSeq Size: 2143 bp
• RefSeq ORF: 1986 bp
• Locus ID: 6490
• UniProt ID: P40967
• Cytogenetics: 12q13.2
• Protein Families: Secreted Protein, Transmembrane
• Summary: This gene encodes a melanocyte-specific type I transmembrane glycoprotein. The encoded protein is enriched in melanosomes, which are the melanin-producing organelles in melanocytes, and plays an essential role in the structural organization of premelanosomes. This protein is involved in generating internal matrix fibers that define the transition from Stage I to Stage II melanosomes. This protein undergoes a complex pattern of prosttranslational processing and modification that is essential to the proper functioning of the protein. A secreted form of this protein that is released by proteolytic ectodomain shedding may be used as a melanoma-specific serum marker. Alternate splicing results in multiple transcript variants. [provided by RefSeq, Jan 2011]
