FH (NM_000143) Human Tagged ORF Clone

SKU RG200614

FH (tGFP-tagged) - Human fumarate hydratase (FH), nuclear gene encoding mitochondrial protein

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: FH
• Synonyms: FMRD; HLRCC; HsFH; LRCC; MCL; MCUL1
• Vector: pCMV6-AC-GFP
• E. coli Selection: Ampicillin (100 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

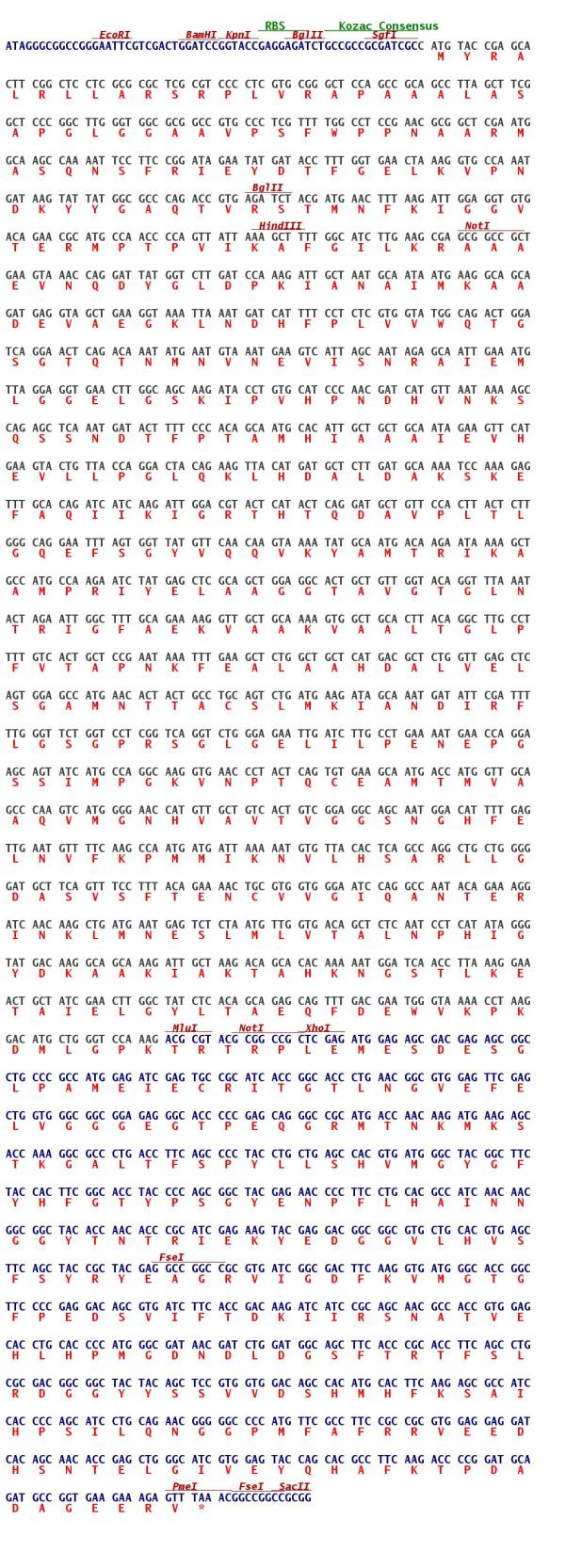

  ORF Nucleotide Sequence

  >RG200614 representing NM_000143; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTACCGAGCACTTCGGCTCCTCGCGCGCTCGCGTCCCCTCGTGCGGGCTCCAGCCGCAGCCTTAGCTT; CGGCTCCCGGCTTGGGTGGCGCGGCCGTGCCCTCGTTTTGGCCTCCGAACGCGGCTCGAATGGCAAGCCA; AAATTCCTTCCGGATAGAATATGATACCTTTGGTGAACTAAAGGTGCCAAATGATAAGTATTATGGCGCC; CAGACCGTGAGATCTACGATGAACTTTAAGATTGGAGGTGTGACAGAACGCATGCCAACCCCAGTTATTA; AAGCTTTTGGCATCTTGAAGCGAGCGGCCGCTGAAGTAAACCAGGATTATGGTCTTGATCCAAAGATTGC; TAATGCAATAATGAAGGCAGCAGATGAGGTAGCTGAAGGTAAATTAAATGATCATTTTCCTCTCGTGGTA; TGGCAGACTGGATCAGGAACTCAGACAAATATGAATGTAAATGAAGTCATTAGCAATAGAGCAATTGAAA; TGTTAGGAGGTGAACTTGGCAGCAAGATACCTGTGCATCCCAACGATCATGTTAATAAAAGCCAGAGCTC; AAATGATACTTTTCCCACAGCAATGCACATTGCTGCTGCAATAGAAGTTCATGAAGTACTGTTACCAGGA; CTACAGAAGTTACATGATGCTCTTGATGCAAAATCCAAAGAGTTTGCACAGATCATCAAGATTGGACGTA; CTCATACTCAGGATGCTGTTCCACTTACTCTTGGGCAGGAATTTAGTGGTTATGTTCAACAAGTAAAATA; TGCAATGACAAGAATAAAAGCTGCCATGCCAAGAATCTATGAGCTCGCAGCTGGAGGCACTGCTGTTGGT; ACAGGTTTAAATACTAGAATTGGCTTTGCAGAAAAGGTTGCTGCAAAAGTGGCTGCACTTACAGGCTTGC; CTTTTGTCACTGCTCCGAATAAATTTGAAGCTCTGGCTGCTCATGACGCTCTGGTTGAGCTCAGTGGAGC; CATGAACACTACTGCCTGCAGTCTGATGAAGATAGCAAATGATATTCGATTTTTGGGTTCTGGTCCTCGG; TCAGGTCTGGGAGAATTGATCTTGCCTGAAAATGAACCAGGAAGCAGTATCATGCCAGGCAAGGTGAACC; CTACTCAGTGTGAAGCAATGACCATGGTTGCAGCCCAAGTCATGGGGAACCATGTTGCTGTCACTGTCGG; AGGCAGCAATGGACATTTTGAGTTGAATGTTTTCAAGCCAATGATGATTAAAAATGTGTTACACTCAGCC; AGGCTGCTGGGGGATGCTTCAGTTTCCTTTACAGAAAACTGCGTGGTGGGAATCCAGGCCAATACAGAAA; GGATCAACAAGCTGATGAATGAGTCTCTAATGTTGGTGACAGCTCTCAATCCTCATATAGGGTATGACAA; GGCAGCAAAGATTGCTAAGACAGCACACAAAAATGGATCAACCTTAAAGGAAACTGCTATCGAACTTGGC; TATCTCACAGCAGAGCAGTTTGACGAATGGGTAAAACCTAAGGACATGCTGGGTCCAAAG; ; ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
  Protein Sequence

  >RG200614 representing NM_000143; Red=Cloning site Green=Tags(s); ; MYRALRLLARSRPLVRAPAAALASAPGLGGAAVPSFWPPNAARMASQNSFRIEYDTFGELKVPNDKYYGA; QTVRSTMNFKIGGVTERMPTPVIKAFGILKRAAAEVNQDYGLDPKIANAIMKAADEVAEGKLNDHFPLVV; WQTGSGTQTNMNVNEVISNRAIEMLGGELGSKIPVHPNDHVNKSQSSNDTFPTAMHIAAAIEVHEVLLPG; LQKLHDALDAKSKEFAQIIKIGRTHTQDAVPLTLGQEFSGYVQQVKYAMTRIKAAMPRIYELAAGGTAVG; TGLNTRIGFAEKVAAKVAALTGLPFVTAPNKFEALAAHDALVELSGAMNTTACSLMKIANDIRFLGSGPR; SGLGELILPENEPGSSIMPGKVNPTQCEAMTMVAAQVMGNHVAVTVGGSNGHFELNVFKPMMIKNVLHSA; RLLGDASVSFTENCVVGIQANTERINKLMNESLMLVTALNPHIGYDKAAKIAKTAHKNGSTLKETAIELG; YLTAEQFDEWVKPKDMLGPK; ; TRTRPLE - GFP Tag - V
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000143
• ORF Size: 1530 bp
• OTI Disclaimer: Due to the inherent nature of this plasmid, standard methods to replicate additional amounts of DNA in E. coli are highly likely to result in mutations and/or rearrangements. Therefore, OriGene does not guarantee the capability to replicate this plasmid DNA. Additional amounts of DNA can be purchased from OriGene with batch-specific, full-sequence verification at a reduced cost. Please contact our customer care team at custsupport@origene.com or by calling 301.340.3188 option 3 for pricing and delivery.; ; The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000143.4
• RefSeq Size: 1791 bp
• RefSeq ORF: 1533 bp
• Locus ID: 2271
• UniProt ID: P07954
• Cytogenetics: 1q43
• Domains: lyase_1
• Protein Families: Druggable Genome
• Protein Pathways: Citrate cycle (TCA cycle), Metabolic pathways, Pathways in cancer, Renal cell carcinoma
• Summary: The protein encoded by this gene is an enzymatic component of the tricarboxylic acid (TCA) cycle, or Krebs cycle, and catalyzes the formation of L-malate from fumarate. It exists in both a cytosolic form and an N-terminal extended form, differing only in the translation start site used. The N-terminal extended form is targeted to the mitochondrion, where the removal of the extension generates the same form as in the cytoplasm. It is similar to some thermostable class II fumarases and functions as a homotetramer. Mutations in this gene can cause fumarase deficiency and lead to progressive encephalopathy. [provided by RefSeq, Jul 2008]
