PDE3B (NM_000922) Human Tagged Lenti ORF Clone

SKU RC219619L2

Lenti ORF clone of Human phosphodiesterase 3B, cGMP-inhibited (PDE3B), mGFP tagged

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PDE3B
• Synonyms: cGIPDE1; HcGIP1
• Vector: pLenti-C-mGFP
• E. coli Selection: Chl (34 ug/mL)
• Mammalian Cell Selection: None
• Sequence Data:

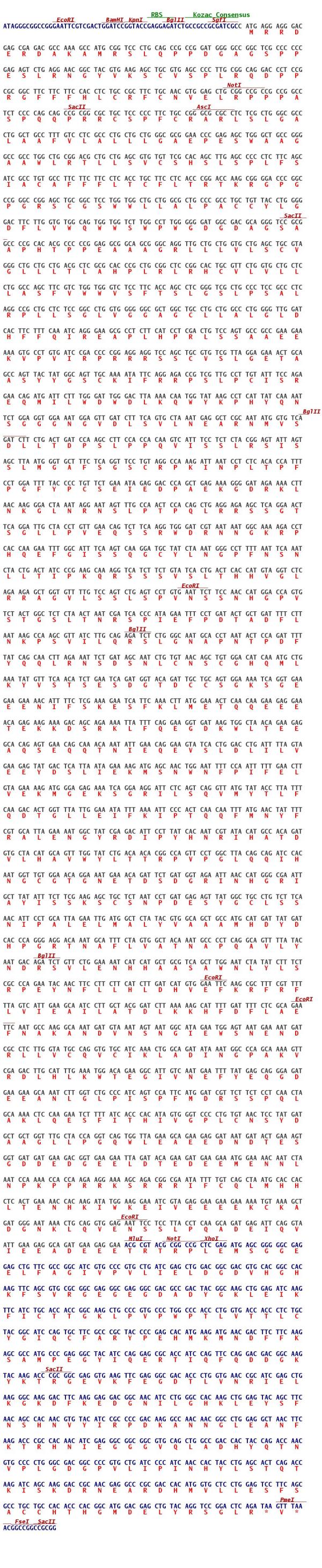

  ORF Nucleotide Sequence

  The ORF insert of this clone is exactly the same as(RC219619).
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_000922
• ORF Size: 3336 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_000922.2
• RefSeq Size: 4784 bp
• RefSeq ORF: 3339 bp
• Locus ID: 5140
• UniProt ID: Q13370
• Cytogenetics: 11p15.2
• Domains: HDc, PDEase
• Protein Families: Druggable Genome, Transmembrane
• Protein Pathways: Insulin signaling pathway, Progesterone-mediated oocyte maturation, Purine metabolism
• MW: 124.2 kDa
• Summary: Cyclic nucleotide phosphodiesterase with a dual-specificity for the second messengers cAMP and cGMP, which are key regulators of many important physiological processes. May play a role in fat metabolism. Regulates cAMP binding of RAPGEF3. Through simultaneous binding to RAPGEF3 and PIK3R6 assembles a signaling complex in which the PI3K gamma complex is activated by RAPGEF3 and which is involved in angiogenesis.[UniProtKB/Swiss-Prot Function]
