KIR3DL2 (NM_001242867) Human Tagged ORF Clone

SKU RC234094

KIR3DL2 (Myc-DDK tagged) - Homo sapiens killer cell immunoglobulin-like receptor, three domains, long cytoplasmic tail, 2 (KIR3DL2), transcript variant 2

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: KIR3DL2
• Synonyms: 3DL2; CD158K; KIR-3DL2; NKAT-4; NKAT4; NKAT4B; p140
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:

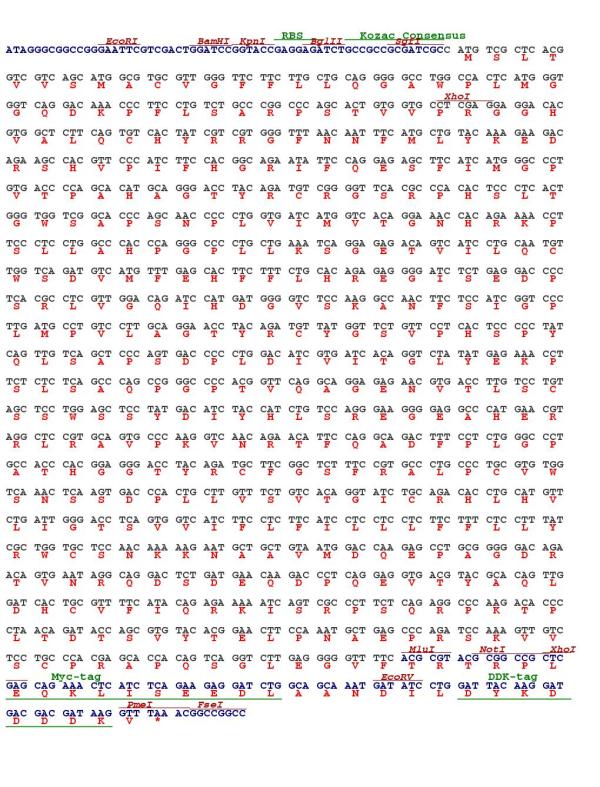

  ORF Nucleotide Sequence

  >RC234094 representing NM_001242867; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGTCGCTCACGGTCGTCAGCATGGCGTGCGTTGGGTTCTTCTTGCTGCAGGGGGCCTGGCCACTCATGG; GTGGTCAGGACAAACCCTTCCTGTCTGCCCGGCCCAGCACTGTGGTGCCTCGAGGAGGACACGTGGCTCT; TCAGTGTCACTATCGTCGTGGGTTTAACAATTTCATGCTGTACAAAGAAGACAGAAGCCACGTTCCCATC; TTCCACGGCAGAATATTCCAGGAGAGCTTCATCATGGGCCCTGTGACCCCAGCACATGCAGGGACCTACA; GATGTCGGGGTTCACGCCCACACTCCCTCACTGGGTGGTCGGCACCCAGCAACCCCCTGGTGATCATGGT; CACAGGAAACCACAGAAAACCTTCCCTCCTGGCCCACCCAGGGCCCCTGCTGAAATCAGGAGAGACAGTC; ATCCTGCAATGTTGGTCAGATGTCATGTTTGAGCACTTCTTTCTGCACAGAGAGGGGATCTCTGAGGACC; CCTCACGCCTCGTTGGACAGATCCATGATGGGGTCTCCAAGGCCAACTTCTCCATCGGTCCCTTGATGCC; TGTCCTTGCAGGAACCTACAGATGTTATGGTTCTGTTCCTCACTCCCCCTATCAGTTGTCAGCTCCCAGT; GACCCCCTGGACATCGTGATCACAGGTCTATATGAGAAACCTTCTCTCTCAGCCCAGCCGGGCCCCACGG; TTCAGGCAGGAGAGAACGTGACCTTGTCCTGTAGCTCCTGGAGCTCCTATGACATCTACCATCTGTCCAG; GGAAGGGGAGGCCCATGAACGTAGGCTCCGTGCAGTGCCCAAGGTCAACAGAACATTCCAGGCAGACTTT; CCTCTGGGCCCTGCCACCCACGGAGGGACCTACAGATGCTTCGGCTCTTTCCGTGCCCTGCCCTGCGTGT; GGTCAAACTCAAGTGACCCACTGCTTGTTTCTGTCACAGGTATCTGCAGACACCTGCATGTTCTGATTGG; GACCTCAGTGGTCATCTTCCTCTTCATCCTCCTCCTCTTCTTTCTCCTTTATCGCTGGTGCTCCAACAAA; AAGAATGCTGCTGTAATGGACCAAGAGCCTGCGGGGGACAGAACAGTGAATAGGCAGGACTCTGATGAAC; AAGACCCTCAGGAGGTGACGTACGCACAGTTGGATCACTGCGTTTTCATACAGAGAAAAATCAGTCGCCC; TTCTCAGAGGCCCAAGACACCCCTAACAGATACCAGCGTGTACACGGAACTTCCAAATGCTGAGCCCAGA; TCCAAAGTTGTCTCCTGCCCACGAGCACCACAGTCAGGTCTTGAGGGGGTTTTC; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC234094 representing NM_001242867; Red=Cloning site Green=Tags(s); ; MSLTVVSMACVGFFLLQGAWPLMGGQDKPFLSARPSTVVPRGGHVALQCHYRRGFNNFMLYKEDRSHVPI; FHGRIFQESFIMGPVTPAHAGTYRCRGSRPHSLTGWSAPSNPLVIMVTGNHRKPSLLAHPGPLLKSGETV; ILQCWSDVMFEHFFLHREGISEDPSRLVGQIHDGVSKANFSIGPLMPVLAGTYRCYGSVPHSPYQLSAPS; DPLDIVITGLYEKPSLSAQPGPTVQAGENVTLSCSSWSSYDIYHLSREGEAHERRLRAVPKVNRTFQADF; PLGPATHGGTYRCFGSFRALPCVWSNSSDPLLVSVTGICRHLHVLIGTSVVIFLFILLLFFLLYRWCSNK; KNAAVMDQEPAGDRTVNRQDSDEQDPQEVTYAQLDHCVFIQRKISRPSQRPKTPLTDTSVYTELPNAEPR; SKVVSCPRAPQSGLEGVF; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_001242867
• ORF Size: 1314 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_001242867.2
• RefSeq Size: 1834 bp
• RefSeq ORF: 1317 bp
• Locus ID: 3812
• UniProt ID: P43630
• Cytogenetics: 19q13.42
• Protein Families: Transmembrane
• Protein Pathways: Antigen processing and presentation, Graft-versus-host disease, Natural killer cell mediated cytotoxicity
• MW: 49 kDa
• Summary: Killer cell immunoglobulin-like receptors (KIRs) are transmembrane glycoproteins expressed by natural killer cells and subsets of T cells. The KIR genes are polymorphic and highly homologous and they are found in a cluster on chromosome 19q13.4 within the 1 Mb leukocyte receptor complex (LRC). The gene content of the KIR gene cluster varies among haplotypes, although several "framework" genes are found in all haplotypes (KIR3DL3, KIR3DP1, KIR3DL4, KIR3DL2). The KIR proteins are classified by the number of extracellular immunoglobulin domains (2D or 3D) and by whether they have a long (L) or short (S) cytoplasmic domain. KIR proteins with the long cytoplasmic domain transduce inhibitory signals upon ligand binding via an immune tyrosine-based inhibitory motif (ITIM), while KIR proteins with the short cytoplasmic domain lack the ITIM motif and instead associate with the TYRO protein tyrosine kinase binding protein to transduce activating signals. The ligands for several KIR proteins are subsets of HLA class I molecules; thus, KIR proteins are thought to play an important role in regulation of the immune response. This gene is one of the "framework" loci that is present on all haplotypes. Alternatively spliced transcript variants encoding multiple isoforms have been observed for this gene. [provided by RefSeq, Jun 2011]
