PDP1 (NM_018444) Human Tagged ORF Clone

SKU RC208198

PDP1 (Myc-DDK-tagged)-Human pyruvate dehyrogenase phosphatase catalytic subunit 1 (PDP1), nuclear gene encoding mitochondrial protein, transcript variant 5

Product Data

• Type: Human Tagged ORF Clone
• Target Symbol: PDP1
• Synonyms: PDH; PDP; PDPC; PPM2A; PPM2C
• Vector: pCMV6-Entry
• E. coli Selection: Kanamycin (25 ug/mL)
• Mammalian Cell Selection: Neomycin
• Sequence Data:
  ORF Nucleotide Sequence

  >RC208198 ORF sequence; Red=Cloning site Blue=ORF Green=Tags(s); ; TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC; GCCGCGATCGCC; ; ATGCCAGCACCAACTCAACTGTTTTTTCCTCTCATCCGTAACTGTGAACTGAGCAGGATCTATGGCACTG; CATGTTACTGCCACCACAAACATCTCTGTTGTTCCTCATCGTACATTCCTCAGAGTCGACTGAGATACAC; ACCTCATCCAGCATATGCTACCTTTTGCAGGCCAAAGGAGAACTGGTGGCAGTACACCCAAGGAAGGAGA; TATGCTTCCACACCACAGAAATTTTACCTCACACCTCCACAAGTCAATAGCATCCTTAAAGCTAATGAAT; ACAGTTTCAAAGTGCCAGAATTTGACGGCAAAAATGTCAGTTCTATCCTTGGATTTGACAGCAATCAGCT; GCCTGCAAATGCACCCATTGAGGACCGGAGAAGTGCAGCAACCTGCTTGCAGACCAGAGGGATGCTTTTG; GGGGTTTTTGATGGCCATGCAGGTTGTGCTTGTTCCCAGGCAGTCAGTGAAAGACTCTTTTATTATATTG; CTGTCTCTTTGTTACCCCATGAGACTTTGCTAGAGATTGAAAATGCAGTGGAGAGCGGCCGGGCACTGCT; ACCCATTCTCCAGTGGCACAAGCACCCCAATGATTACTTTAGTAAGGAGGCATCCAAATTGTACTTTAAC; AGCTTGAGGACTTACTGGCAAGAGCTTATAGACCTCAACACTGGTGAGTCGACTGATATTGATGTTAAGG; AGGCTCTAATTAATGCCTTCAAGAGGCTTGATAATGACATCTCCTTGGAGGCGCAAGTTGGTGATCCTAA; TTCTTTTCTCAACTACCTGGTGCTTCGAGTGGCATTTTCTGGAGCCACTGCTTGTGTGGCCCATGTGGAT; GGTGTTGACCTTCATGTGGCCAATACTGGCGATAGCAGAGCCATGCTGGGTGTGCAGGAAGAGGACGGCT; CATGGTCAGCAGTCACGCTGTCTAATGACCACAATGCTCAAAATGAAAGAGAACTAGAACGGCTGAAATT; GGAACATCCAAAGAGTGAGGCCAAGAGTGTCGTGAAACAGGATCGGCTGCTTGGCTTGCTGATGCCATTT; AGGGCATTTGGAGATGTAAAGTTCAAATGGAGCATTGACCTTCAAAAGAGAGTGATAGAATCTGGCCCAG; ACCAGTTGAATGACAATGAATATACCAAGTTTATTCCTCCTAATTATCACACACCTCCTTATCTCACTGC; TGAGCCAGAGGTAACTTACCACCGATTAAGGCCACAGGATAAGTTTCTGGTGTTGGCTACTGATGGGTTG; TGGGAGACTATGCATAGGCAGGATGTGGTTAGGATTGTGGGTGAGTACCTAACTGGCATGCATCACCAAC; AGCCAATAGCTGTTGGTGGCTACAAGGTGACTCTGGGACAGATGCATGGCCTTTTAACAGAAAGGAGAAC; CAAAATGTCCTCGGTATTTGAGGATCAGAACGCAGCAACCCATCTCATTCGCCACGCTGTGGGCAACAAC; GAGTTTGGGACTGTTGATCATGAGCGCCTCTCTAAAATGCTTAGTCTTCCTGAAGAGCTTGCTCGAATGT; ACAGAGATGACATTACAATCATTGTAGTTCAGTTCAATTCTCATGTTGTAGGGGCGTATCAAAACCAAGA; A; ; ACGCGTACGCGGCCGCTCGAGCAGAAACTCATCTCAGAAGAGGATCTGGCAGCAAATGATATCCTGGATT; ACAAGGATGACGACGATAAGGTTTAA
  Protein Sequence

  >RC208198 protein sequence; Red=Cloning site Green=Tags(s); ; MPAPTQLFFPLIRNCELSRIYGTACYCHHKHLCCSSSYIPQSRLRYTPHPAYATFCRPKENWWQYTQGRR; YASTPQKFYLTPPQVNSILKANEYSFKVPEFDGKNVSSILGFDSNQLPANAPIEDRRSAATCLQTRGMLL; GVFDGHAGCACSQAVSERLFYYIAVSLLPHETLLEIENAVESGRALLPILQWHKHPNDYFSKEASKLYFN; SLRTYWQELIDLNTGESTDIDVKEALINAFKRLDNDISLEAQVGDPNSFLNYLVLRVAFSGATACVAHVD; GVDLHVANTGDSRAMLGVQEEDGSWSAVTLSNDHNAQNERELERLKLEHPKSEAKSVVKQDRLLGLLMPF; RAFGDVKFKWSIDLQKRVIESGPDQLNDNEYTKFIPPNYHTPPYLTAEPEVTYHRLRPQDKFLVLATDGL; WETMHRQDVVRIVGEYLTGMHHQQPIAVGGYKVTLGQMHGLLTERRTKMSSVFEDQNAATHLIRHAVGNN; EFGTVDHERLSKMLSLPEELARMYRDDITIIVVQFNSHVVGAYQNQE; ; TRTRPLEQKLISEEDLAANDILDYKDDDDKV
• Chromatograms: Chromatograms ; Sequencher program is needed, download here

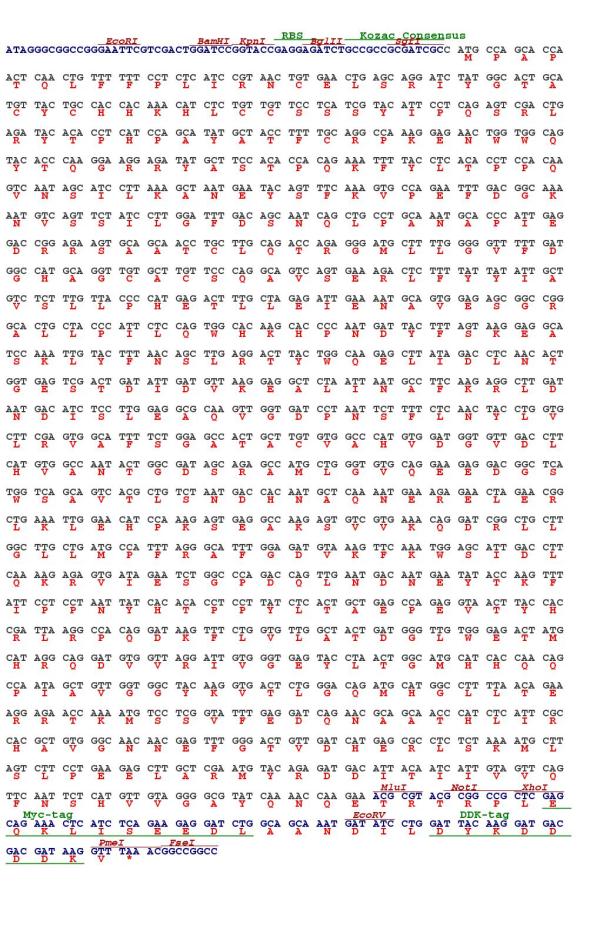

• Restriction Sites: SgfI-MluI Cloning Scheme for this gene Plasmid Map
• ACCN: NM_018444
• ORF Size: 1611 bp
• OTI Disclaimer: The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
• OTI Annotation: This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
• Components: The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
• Reconstitution Method: 1. Centrifuge at 5,000xg for 5min.; 2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.; 3. Close the tube and incubate for 10 minutes at room temperature.; 4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.; 5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
• Note: Plasmids are not sterile. For experiments where strict sterility is required, filtration with 0.22um filter is required.
• Shipping: Ambient

Reference Data

• RefSeq: NM_018444.4
• RefSeq Size: 4291 bp
• RefSeq ORF: 1614 bp
• Locus ID: 54704
• UniProt ID: Q9P0J1
• Cytogenetics: 8q22.1
• Domains: PP2C
• Protein Families: Druggable Genome, Phosphatase
• MW: 61.1 kDa
• Summary: Pyruvate dehydrogenase (E1) is one of the three components (E1, E2, and E3) of the large pyruvate dehydrogenase complex. Pyruvate dehydrogenase kinases catalyze phosphorylation of serine residues of E1 to inactivate the E1 component and inhibit the complex. Pyruvate dehydrogenase phosphatases catalyze the dephosphorylation and activation of the E1 component to reverse the effects of pyruvate dehydrogenase kinases. Pyruvate dehydrogenase phosphatase is a heterodimer consisting of catalytic and regulatory subunits. Two catalytic subunits have been reported; one is predominantly expressed in skeletal muscle and another one is is much more abundant in the liver. The catalytic subunit, encoded by this gene, is the former, and belongs to the protein phosphatase 2C (PP2C) superfamily. Along with the pyruvate dehydrogenase complex and pyruvate dehydrogenase kinases, this enzyme is located in the mitochondrial matrix. Mutation in this gene causes pyruvate dehydrogenase phosphatase deficiency. Multiple alternatively spliced transcript variants encoding different isoforms have been identified.[provided by RefSeq, Jun 2009]
