6430548M08Rik (NM_172286) Mouse Tagged ORF Clone

  • TrueORF®
Be the first to review this product
SKU
MG223775
6430548M08Rik (tGFP-tagged) - Mouse RIKEN cDNA 6430548M08 gene (6430548M08Rik) transcript variant 1, (10ug)
Interest in protein/lysate? Submit request here!
ORF Plasmid:
tGFP tGFP DDK
AAV Particle:
DDK
  $657.00
3 Weeks*
Bulk Requests & Clone Modifications

Frequently Bought Together (4)

TA150041 Mouse monoclonal turboGFP antibody, clone OTI2H8 100 ul
$447.00
CC100003 DH5α Chemically Competent Cells (≥10^8 cfu/μg of pUC19 DNA)
5 x 200 ul
$170.00
PRIMER Forward sequencing primer VP1.5, Reverse sequencing primer XL39, 100pmoles each
100 pmol
$59.00
PS100010 pCMV6-AC-GFP, mammalian vector with C-terminal tGFP tag, 10ug
10 ug
$780.00

Other products for "6430548M08Rik or NM_172286"

Specifications
Specifications
Product Data
Type Mouse Tagged ORF Clone
Target Symbol 6430548M08Rik
Synonyms AW049007; Kiaa0513; mKIAA0513
Vector pCMV6-AC-GFP
E. coli Selection Ampicillin (100 ug/mL)
Mammalian Cell Selection Neomycin
Sequence Data
ORF Nucleotide Sequence
>MG223775 representing NM_172286
Red=Cloning site Blue=ORF Green=Tags(s)

TTTTGTAATACGACTCACTATAGGGCGGCCGGGAATTCGTCGACTGGATCCGGTACCGAGGAGATCTGCC
GCCGCGATCGCC

ATGGAGGCCCCAGAAGTCCCTGTGGGCTCCCTGATTGACTTTGAGACTGAACCACCTACCTCCCCTCCTT
TGGAAGCAGCACCGTCAACGCTCCAGGACCCAGATGGCTCCCTGGGTGATGGTGCATCTGAGAGTGAGAC
CACCGAGTCCGCAGACAGTGAGAACGACATGGGCGAGTCACCTTCACACCCATCCTGGGACCAGGACCGA
CGCTCTTCCTCCAATGAGTCCTTCTCCTCCAATCAGAGTGCTGATTCCGCCCCAGATGAGGAGACCCTGG
CACTTCGAGAGTTTATGCGCAGCTACGTAGAGAAGATCTTCTCTGGAGGGGAGGACTTGGACCAGGAAGA
GAAAGCCAAGTTTGGGGAGTACTGCAGCGGAGAAGACGGGAAAGGCCGGGAATGGTTCGCACGCTTTGTG
AGCGCACAGCGCTGCAAGTCCAAGTGTGTGTCGGAGCCAACCTTCTACCGCCTGGTGCAGTCCTTCGCGG
TAGTGCTGTTTGAATGCCACCAGATGGACGACTTCGGGCCTGCCAAGAACCTCATGACCATGTGCTTCAC
TTACTACCATCTGGGCAAGCCCCAGCTGCCCCCGACAGAGCCCAGGGAGAAGCCAGCAGGCAGTATTGAC
TCCTACCTGAAGTCAGCCAACAGCTGGCTGGCAGAGAAGAAGGACATTGCCGAGCGGCTGCTGAAGAACA
CAGAGAACATGAAAGGCTTTTTCGGGGGGCTGGAGACCAAGCTGAAAGGACCGCTGGTCAGGAAAAATGA
GGAAGATGAGAACAAACCTAAGGACAGACAGACGAAGACTGTGACCATGATCAGCCCTGAGGATGAGCAG
AAGGGGGAGAAGGTTTACCTGTACACGCACCTGAGGCAGCAGCCCATCTGGCACACGCTGAGGTTCTGGA
ATGCTGCCTTTTTTGATGCTGTCCATTGTGAGAGGCGGAAGCGATCCCCCACCACCAGAGGGGATGCTGG
AGAGCAGGAGGAGAAGAGGGAGAAATGGTGCCACATGACCCAGGAAGAACGGGATGACAGCCTGCGCTTC
AACGAGAACATCACCTTCGGGCAGCTGGGCACGTTCACCCACAACATGCTGGCCTTTGGCTTGAACAAGA
AGCTATGCAGCGACTTCCTGAAGAAGCAGGCTGTGATTGGCAATCTAGATGAAGAGCAATACAAGCTGCT
AAGTGACCACATCGAGCAAATGGCCACAGAG

ACGCGTACGCGGCCGCTCGAG - GFP Tag - GTTTAA
Protein Sequence
>MG223775 representing NM_172286
Red=Cloning site Green=Tags(s)

MEAPEVPVGSLIDFETEPPTSPPLEAAPSTLQDPDGSLGDGASESETTESADSENDMGESPSHPSWDQDR
RSSSNESFSSNQSADSAPDEETLALREFMRSYVEKIFSGGEDLDQEEKAKFGEYCSGEDGKGREWFARFV
SAQRCKSKCVSEPTFYRLVQSFAVVLFECHQMDDFGPAKNLMTMCFTYYHLGKPQLPPTEPREKPAGSID
SYLKSANSWLAEKKDIAERLLKNTENMKGFFGGLETKLKGPLVRKNEEDENKPKDRQTKTVTMISPEDEQ
KGEKVYLYTHLRQQPIWHTLRFWNAAFFDAVHCERRKRSPTTRGDAGEQEEKREKWCHMTQEERDDSLRF
NENITFGQLGTFTHNMLAFGLNKKLCSDFLKKQAVIGNLDEEQYKLLSDHIEQMATE

TRTRPLE - GFP Tag - V
Restriction Sites SgfI-MluI Cloning Scheme for this gene | Plasmid Map
ACCN NM_172286
ORF Size 1221 bp
OTI Disclaimer The molecular sequence of this clone aligns with the gene accession number as a point of reference only. However, individual transcript sequences of the same gene can differ through naturally occurring variations (e.g. polymorphisms), each with its own valid existence. This clone is substantially in agreement with the reference, but a complete review of all prevailing variants is recommended prior to use. More info
OTI Annotation This clone was engineered to express the complete ORF with an expression tag. Expression varies depending on the nature of the gene.
Components The ORF clone is ion-exchange column purified and shipped in a 2D barcoded Matrix tube containing 10ug of transfection-ready, dried plasmid DNA (reconstitute with 100 ul of water).
Reconstitution Method 1. Centrifuge at 5,000xg for 5min.
2. Carefully open the tube and add 100ul of sterile water to dissolve the DNA.
3. Close the tube and incubate for 10 minutes at room temperature.
4. Briefly vortex the tube and then do a quick spin (less than 5000xg) to concentrate the liquid at the bottom.
5. Store the suspended plasmid at -20°C. The DNA is stable for at least one year from date of shipping when stored at -20°C.
Note Plasmids are not sterile.  For experiments where strict sterility is required, filtration with 0.22um filter is required.
Shipping Ambient
Reference Data
RefSeq NM_172286.4, NP_758490.3
RefSeq Size 5565 bp
RefSeq ORF 1224 bp
Locus ID 234797
UniProt ID Q8R0A7
Cytogenetics 8 E1
Reviews
Write Review






Be the first to review this product

Please note:
Only reviews with images are eligible for a $20/20€ Amazon gift card.
Reviews without images are eligible for a $10/10€ Amazon gift card.
For more details about the terms and conditions, please visit the promotion page.

Review image
Documents
Resources
"NM_172286" in other vectors (5)
SKU Description Size Price
MC201709 6430548M08Rik (untagged) - Mouse RIKEN cDNA 6430548M08 gene (6430548M08Rik), transcript variant 1, (10ug) 10 ug
$457.00
MG206403 6430548M08Rik (tGFP-tagged) - Mouse RIKEN cDNA 6430548M08 gene (6430548M08Rik) 10 ug
$657.00
MR223775 6430548M08Rik (Myc-DDK-tagged) - Mouse RIKEN cDNA 6430548M08 gene (6430548M08Rik), transcript variant 1 10 ug
$289.00 $457.00
MR223775L3 Lenti ORF clone of 6430548M08Rik (Myc-DDK-tagged) - Mouse RIKEN cDNA 6430548M08 gene (6430548M08Rik), transcript variant 1 10 ug
$757.00
MR223775L4 Lenti ORF clone of 6430548M08Rik (mGFP-tagged) - Mouse RIKEN cDNA 6430548M08 gene (6430548M08Rik), transcript variant 1 10 ug
$757.00

Plasmid Map for MG223775

Download sequence for

file-download TXT (FASTA format)

file-download Genbank

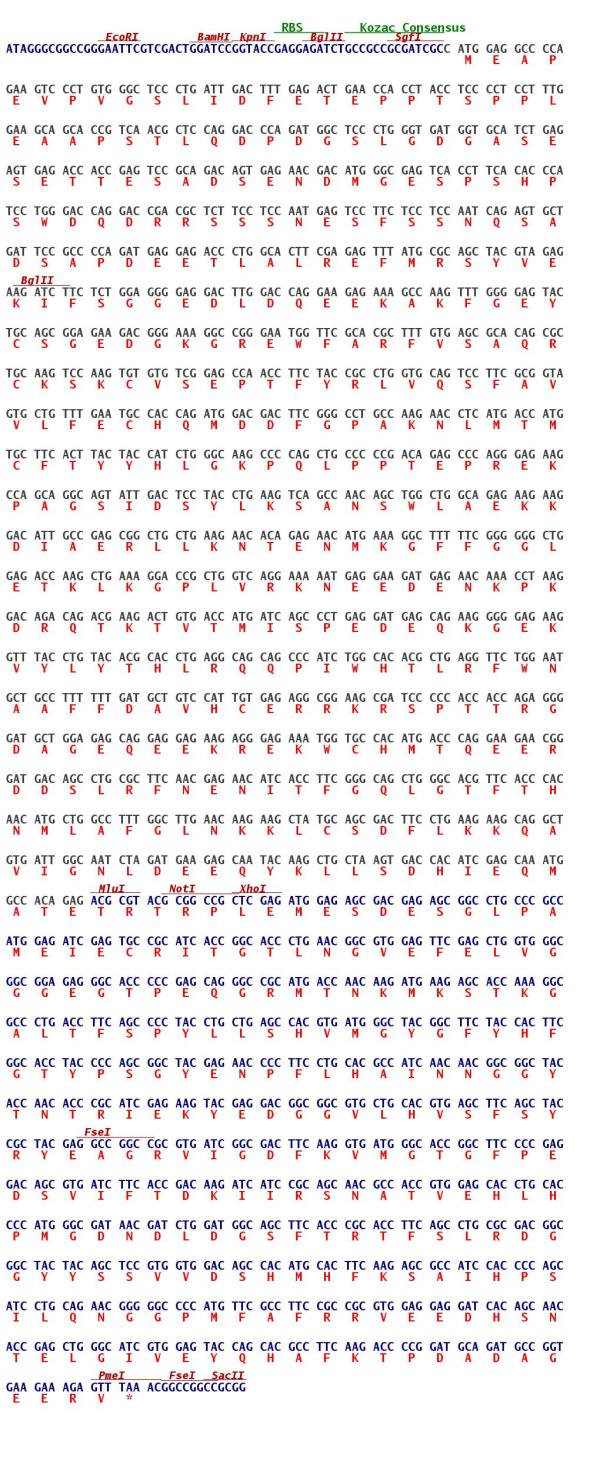

Cloning scheme for MG223775

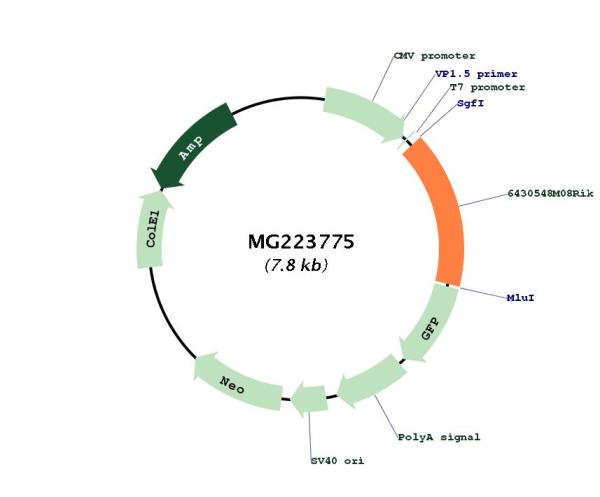

Circular map for MG223775
